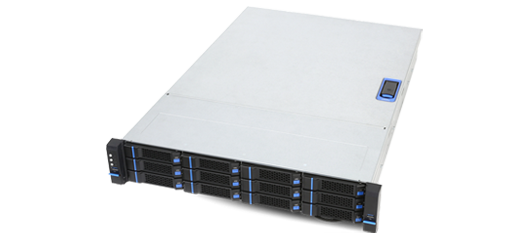

RM238 Series
2U 雙路模組化通用伺服器機箱
透過模組化和免工具安裝設計,可靈活配置機箱組態,滿足企業多樣化的需求
比較
快速搜尋
  • 依據機殼形式
  • 依據主機板
  • 依據磁碟陣列卡
  • 依據電源供應器
比較
特點與利益

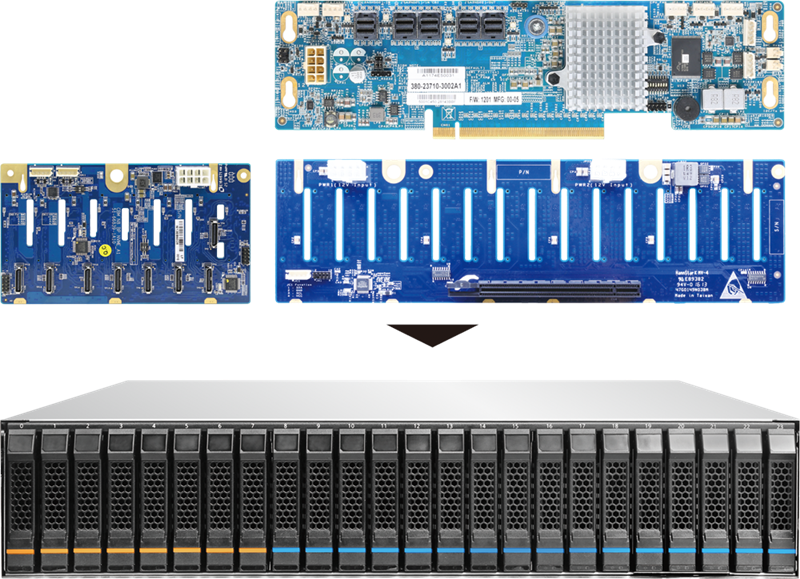

  • 提供模組化NVMe 解決方案,讓企業輕鬆解決大量商務需求

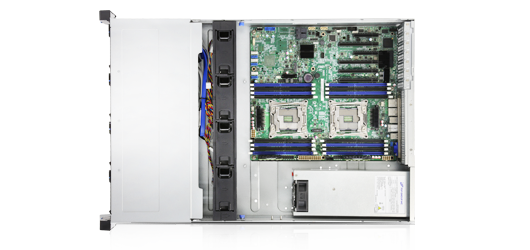

  • 支援主機板尺寸最大至12”x 13"
  • 搭配免工具安裝的2.5" 或 3.5" 硬碟盤
  • 模組化的硬碟盒可支援8顆3.5''、12顆3.5''或24顆2.5''硬碟,符合多種應用需求

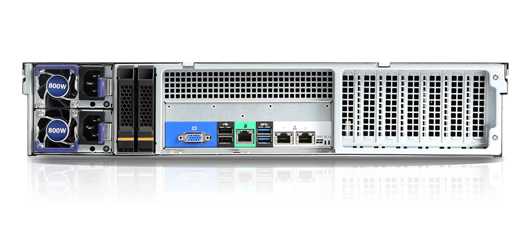

  • 選配後置2顆2.5''熱插拔硬碟盤
  • 支援多種12Gb/s 背板,提供彈性化的產品組態
  • 最多可配置2個前置USB3.0

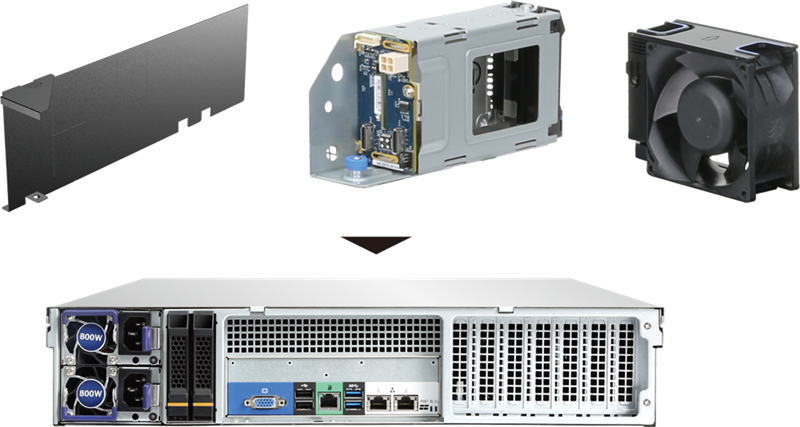

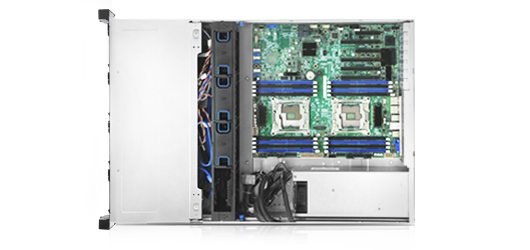

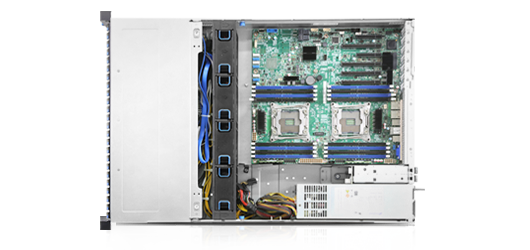

  • 最多可支援4顆熱插拔80 mm中置風扇

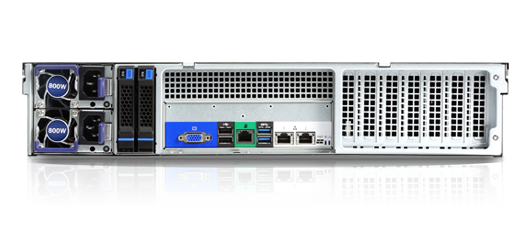

  • 支援7個半高的PCI-e擴充槽位,選配3個全高的PCI-e擴展插槽位

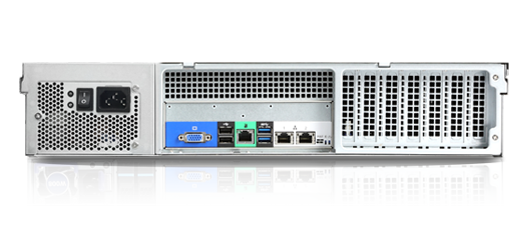

  • 支援1 + 1冗餘電源,或2U單電
  • 規格
  • 下載
  • 選配件
  • 相容列表
  • 訂購訊息
  • 主機板尺寸 SSI EEB (12" x 13")
    外觀尺寸 (深x 寬 x 高) 658.6 x 438.0 x 87.0 (mm)
    25.93" x 17.24" x 3.43"

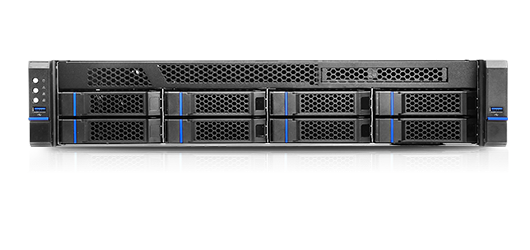

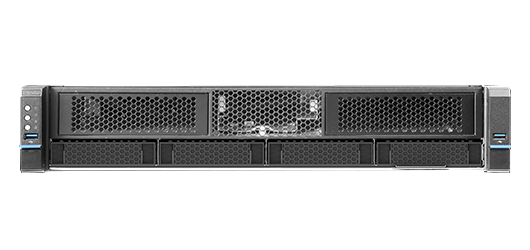

    儲存媒體插槽 RM23808 (3.5" Hot-swap):8
    RM23808 (Slim ODD):1
    RM23808 (Internal 2.5"):2

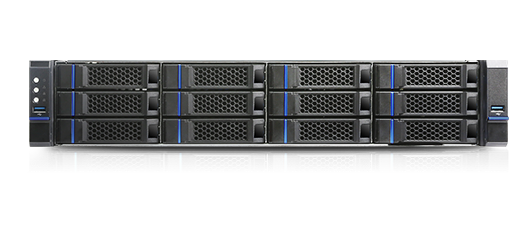

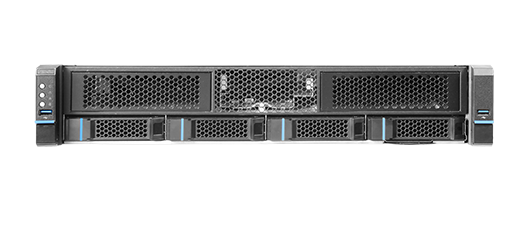

    RM23812 (3.5" Hot-swap):12

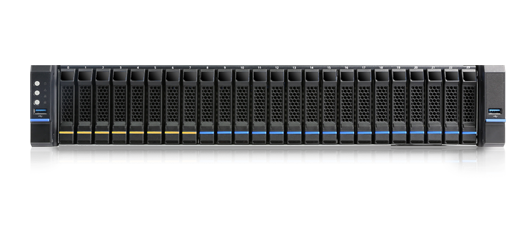

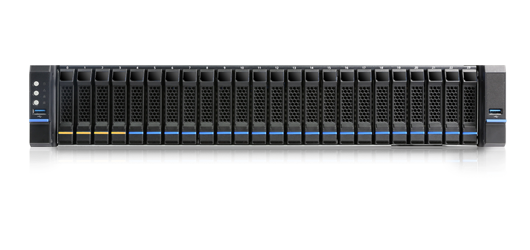

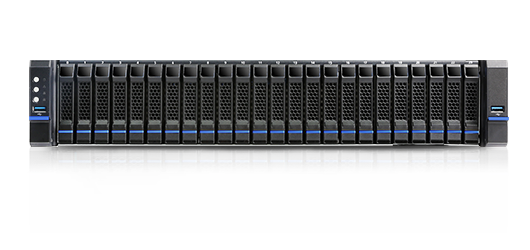

    RM23824 (2.5" Hot-swap):24
    Optional 2.5" (Hot-swap) for OS:2
    電源供應器 2U Single or 1+1 CRPS
    前置指示燈 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x HDD Status
    1 x System Alarm
    前置控制 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.0
    系統安全裝置 Intrusion switch (Option)
    擴充槽 3 x Full Height or 7 x Low Profile
    硬碟熱插拔背板 RM23808: 3.5" 8-port 12Gbps, Mini-SAS HD
    RM23812: 3.5" 12-port 12Gbps Mini-SAS HD, Passive or Active
    RM23824: 2.5" 8-port 12Gbps, Mini-SAS HD
    2.5" 16-port 12Gbps, Mini-SAS HD, Expander
    RM23824: (NVMe)
    2.5" 8-port 12Gbps, Mini-SAS HD, 4-port Tri-mode
    2.5" 8-port PCIe Gen 3, OCuLink
    淨重 11.5 kg/25.33 lb
    毛重 14.0 kg/30.84 lb
    面板 Option
    材積 3.30
    裝櫃數量(單包) 20': 200, 40': 460, 40'H: 506
  • 類別 規格敘述 版本 大小 下載
    Configuration Guide RM238 Series Configuration Guide V1.1 519.9 KB
    Product Brief RM238 Series Product Brief V1.0 378.1 KB
    Technical Product Specification (TPS) RM238 Series TPS V1.1 6.4 MB
    技術規格 Datasheet_RM238 series with NVMe solutions V1.8 1.7 MB
    技術規格 Datasheet_RM238 series with NVMe solutions V1.6 1.8 MB
    使用手冊 RM238 Series QIG V1.0 12.7 MB
  • 產品類別 料號 規格敘述 支援
    Backplane
    80H10323703A1
    2-por 12Gb/s SATA& SAS Backplane for 2.5" HDD/SSD
    Bezel
    384-23705-3106A0
    Front Bezel, 2U, Metal, 18Pcs/CTN
    Bracket
    384-23804-3103A0
    Bracket, PSU, For FSP 2U CRPS PSU, 24PCS/CTN(MOQ=48)
    Cable
    126-23712-3004A0

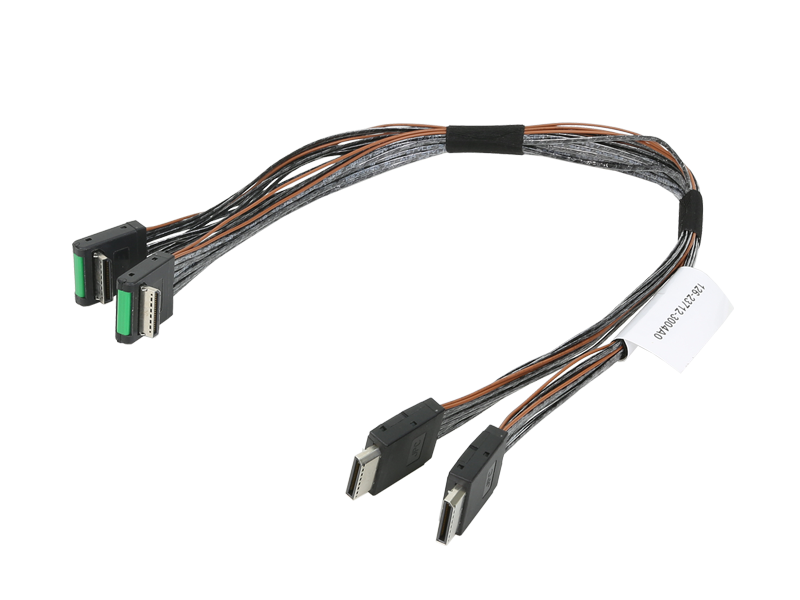

    Cable, Oculink to Oculink R/A, 2 in 1, 300mm
    Cable
    126-23712-3005A0

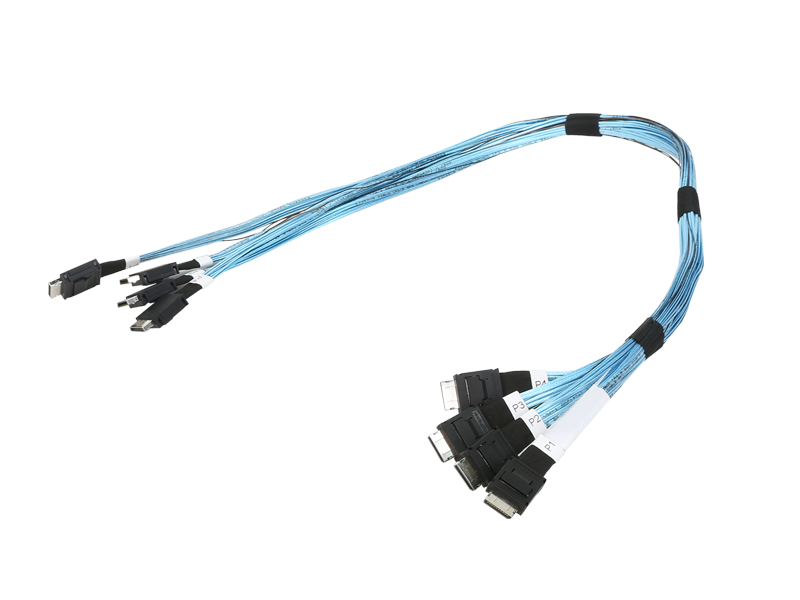

    Cable, Oculink to Oculink, 4 in 1, 650mm/600mm
    Cable
    26H11313705A0
    I2C, 4-pin to 4-pin, 800mm, M/B to LED Board
    Cable
    26H12314604A0

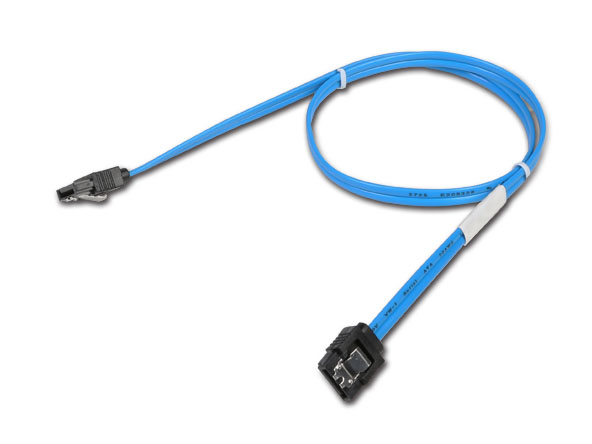

    SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
    Cable
    26H12314607A0
    Cable, Mini SAS HD, HDD Backplane to Motherboard/HBA Card, 550 mm
    Fan
    384-23811-3101A0

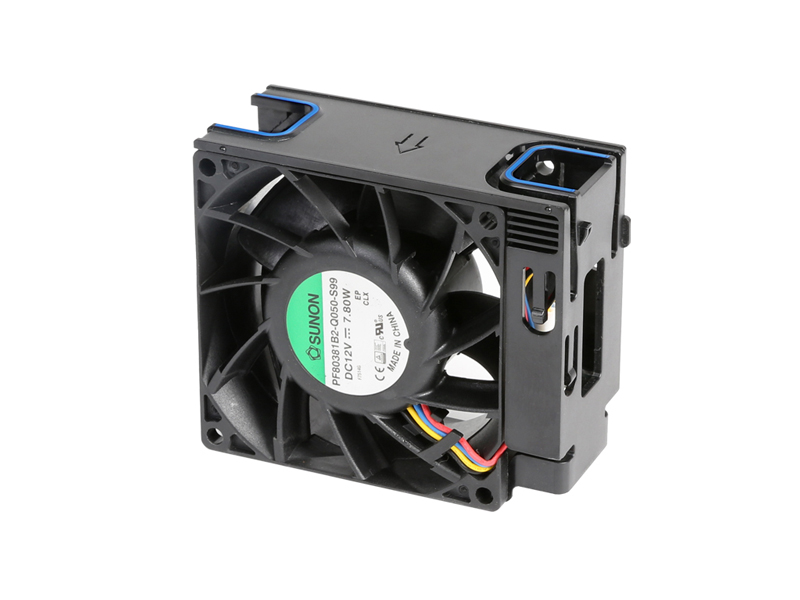

    Fan, 80 mm, T=38 mm, PWM, SUNON, Hot-swap, with Fan Bracket
    HDD Cage
    384-23701-3116A0
    2-bay 2.5" HDD Cage, with 2-port 12Gb/s SAS/SATA Backplane (Redundant PSU Version Only)
    Holder
    84H314610-004
    3.5" HDD Tray, Tool-less, 50 pcs/CTN
    PCIe Card
    384-23820-3101A0
    Low Profile Quad-Port NVMe Internal Host Bus Adapter, 20PCS/CTN
    Power Supply
    132-10700-0500A1

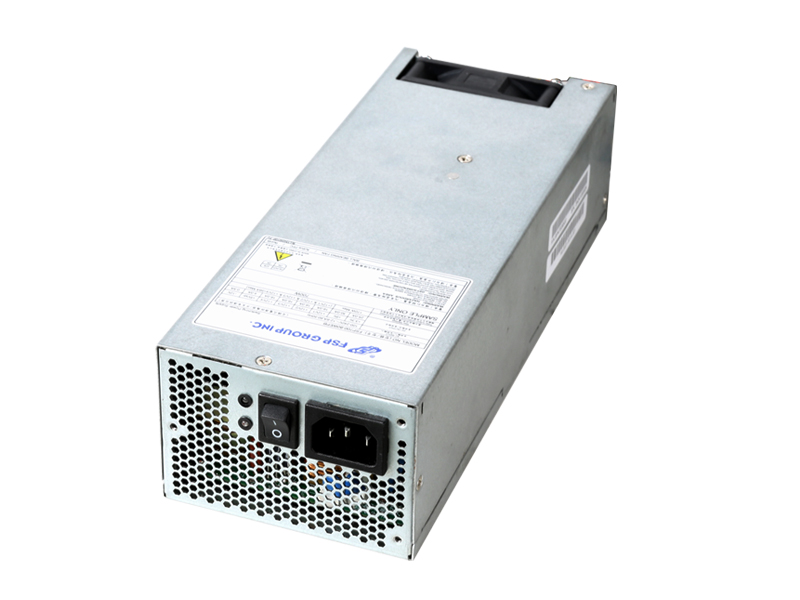

    PSU, 700W, 2U Single, FSP700-80WEPB
    Power Supply
    384-23804-3100A1

    PSU, 800W, 1 + 1 CRPS, FSP800-20ERM, with Power Cage and Power Distribution Board

    Power Supply
    384-23804-3101A0

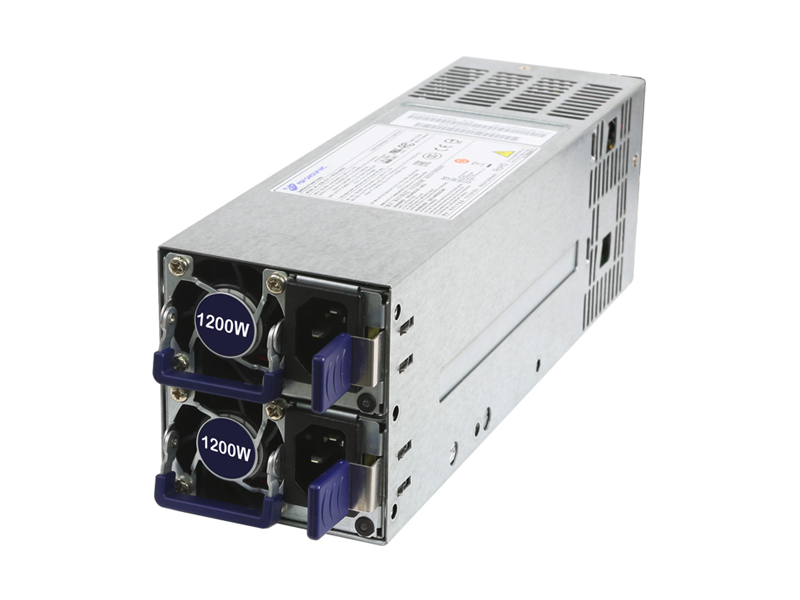

    PSU, CRPS, 1200W, Hot-swap, with PDB, FSP, 1+1(132-21200-0501A0), 2 Set/CTN
    Rear Window
    384-23712-3102A0
    (PCI-e) Retention Bracket, 2U, 3-slot, Full Height
    Rear Window
    384-23808-3100A0
    Rear Window, 2U, for 3-slot Full Height (PCI-e) Retention Bracket
    Riser Card
    384-23812-3101A0
    Riser Card, PCBA, 2 x PCI-ex8
    Slide Rail
    384-14303-3100A0
    AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-23803-3300A0
    32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Upgrade Kits
    384-23701-3112A0
    N4 Upgrade Kits, HDD module with HDD tray, 4-port NVMe + 20-port SAS / SATA
    Upgrade Kits
    384-23701-3117A0
    N8 Upgrade Kits, HDD module with HDD tray, 8-port NVMe+16-port SAS / SATA
    Upgrade Kits
    384-23701-3118A0
    NF Upgrade Kits, HDD module with HDD tray, 3 x 8-port NVMe
    Upgrade Kits
    384-23801-3100A0
    N2 Upgrade Kits, HDD module with HDD tray & Fan, 2-port NVMe, for RM238
    Click Part. No# to view item picture
  • 訂購碼 熱插拔背板 風扇 電源供應器 擴充槽
    RM23808M3-LC 3.5” 12Gb/s mini-SAS HD 4 x 8025 2U Single(option) 7-slot, LP
    RM23808M3-R800L 3.5” 12Gb/s mini-SAS HD 3 x 8038 800W CRPS 7-slot, LP
    RM23812E3-L 3.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM23812E3-R800L 3.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM23812E3-RL 3.5” 12Gb/s Expander 3 x 8038 800W CRPS 7-slot, LP
    RM23812M3-RL 3.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM23824E3-L 2.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM23824E3-RC00L 2.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM23824E3-RL 2.5” 12Gb/s Expander 3 x 8038 2U Single(option) 7-slot, LP
    RM238N20T4-R 12Gbps, 8-port NVME (2pcs), Tri-Mode (1pcs) 4 x 8038 CRPS (Optional) 7-slot, LP
    RM238N24-RL 12Gbps, 8-port NVME (3pcs) 4 x 8038 CRPS (Optional) 7-slot, LP
    RM238N4T20-RL 12Gbps, 8-port NVME, 20-port SAS/SATA 4 x 8038 CRPS (Optional) 7-slot, LP
    RM238N8T16-RL 12Gbps, 8-port NVME, 16-port SAS/SATA 4 x 8038 CRPS (Optional) 7-slot, LP
