RM91250 (EOL)

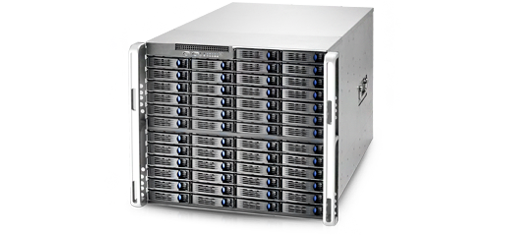

9U 50-bay High Storage Density Server Chassis
It is optimized for any high storage capacity application with fifty 3.5" hot-swap drive bays in 800mm depth of cabinet.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

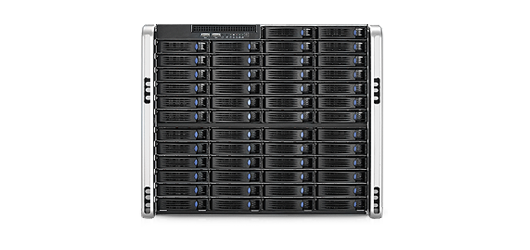

  • Support up to 50 x 3.5" HDD including 2 x mirroring OS drive bays
  • Support 16" x 13" quad CPU M/B
  • User friendly front and side lifting handles
  • Excellent cooling performance for M/B and HDD via partition

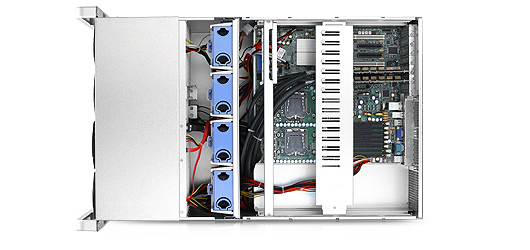

  • Built-in middle 4 x 80mm hot-swap fans with anti-vibration mechanism
  • Built-in exhausted 4 x 80mm and 2 x 120mm hot-swap fans
  • Supports 6Gb/s mini-SAS backplane
  • Built-in 1620W 3+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 9U
    M/B Form Factor Extended ATX (12” x 13”), 16.4” x 13”
    Dimensions (Dx Wx H) 693 x 430 x 397 (mm), 27.2” x 16.9” x 15.6”
    Drive Bays Slim ODD:1
    3.5" Hot-swap:50
    PSU Form Factor 1620W 3+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm (T=38mm), Hot-swap , Rear: 4 x 80mm and 2 x 120mm, Hot-swap
    Expansion Slots 7x Full Height and Full Length
    HDD Backplane 6Gb/s mini-SAS
    Metal Thickness 1.2mm
    Net Weight 51.2kg
    Gross Weight 81.2kg
    Front Bezel Option
    Cubic Feet 16.31
    Container Loading (Single Packing) 20’: 63, 40’: 129
  • Category Description Revision Size Download
    Datasheet RM91250 Datasheet V1.2 1.6 MB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H10321513C0) Rev.C0 V1.1 609.8 KB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10321516A1) Rev.A1 V1.1 664.7 KB
    User Manual RM91250 Quick Installation Guide V1.1 554.1 KB
  • Category Part. No# Description Support
    Cable
    26H113215-030
    Cable, SFF-8087 to SFF-8087, 600mm
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM91250M2-RG20G 16"x13" 6Gb/s mini-SAS 1620W Redundant 7xFF Included
