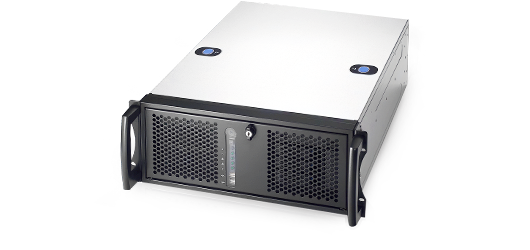

RM42200
4U Feature-Advanced Industrial Server Chassis
With advanced rotatable drive cage, it supports rackmount and standalone installations for wide-ranging IPC and server applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 10.5”
  • Optional 15-slot rear window for industry backplane
  • Available for rackmount and stand-alone installation

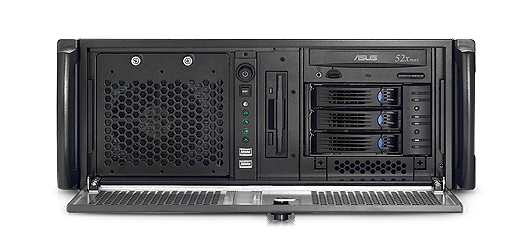

  • Rotatable 5.25” cage to keep device in horizontal position
  • Dedicated front 120mm fan for add-on card cooling
  • Card retainer to hold low profile and full height add-on cards
  • User friendly design on front key lock and lifting handle (stand-alone)
  • Supports PS/2 single or mini-redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor ATX (12” x 10.5”)
    Dimension (D x W x H) 522.4 x 430.0 x 176.0 (mm)
    20.57” x 16.93” x 6.93”
    Drive Bay External 5.25":3
    External 3.5":2
    Internal 3.5":3
    Storage Backplane N/A
    PSU Form Factor PS/2 Single or 1+1 Redundant
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0
    Cooling Fan Front: 120 x 25 mm (1), Non Hot-swap
    Rear: 80 x 25 mm (2) , Non Hot-swap , Option
    System Security Intrusion Switch (Option)
    Key Lock on Front Panel

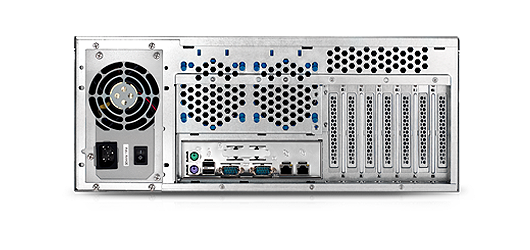

    Expansion Slot Opening 7 x Full Height and Full Length
    Net Weight 13.4 kg/29.52 lb
    Gross Weight 16.1 kg/35.46 lb
    Cubic Feet 4.28
    Container Loading (Single Packing) 20’: 227, 40’: 463, 40’H: 526
  • Category Description Revision Size Download
    Datasheet RM42200 Datasheet V1.2 1.2 MB
    User Manual RM42200 Quick Installation Guide V1.1 476.4 KB
  • Category Part. No# Description Support
    Bracket
    84H342210-026
    Bracket, Slim ODD, w/SATA PCBA
    Foot Stand
    84H342210-002
    Stand alone Kit, 4pcs/set, for RM42200
    PCB
    84H331410-025
    6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable

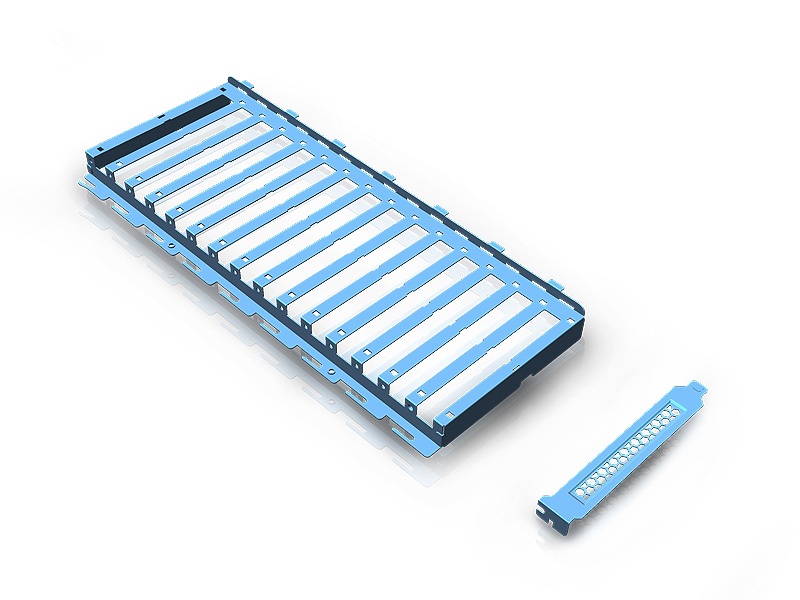

    Rear Window
    84H342210-011
    Rear window, 15-slot, w/slot brackets, RM42200

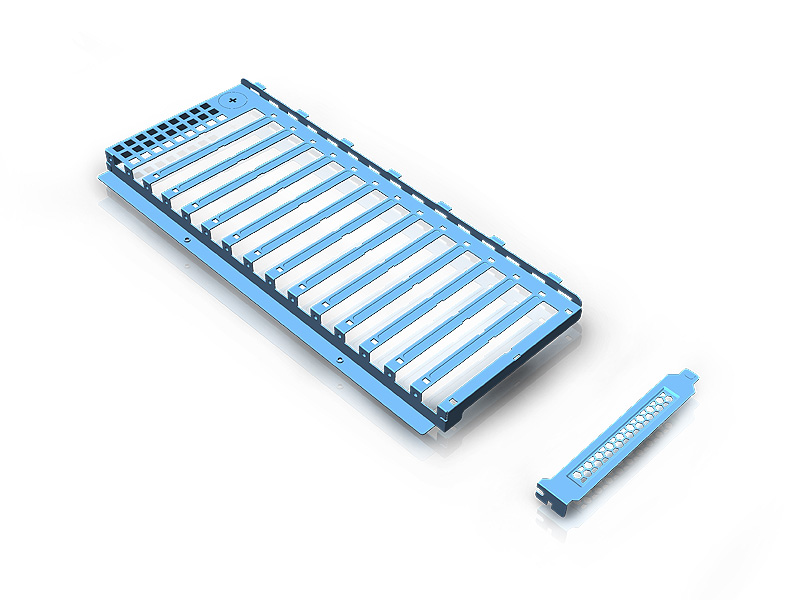

    Rear Window
    84H342210-022
    Rear window, 14-slot, w/slot brackets, RM42200
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B Slim ODD Bay PSU Back Panel Slide Rail Front Panel
    RM42200-F1 12"x10.5" Support Option 7 x FH Option 1-door
