RM418 Series
4U Modular Storage Server Chassis

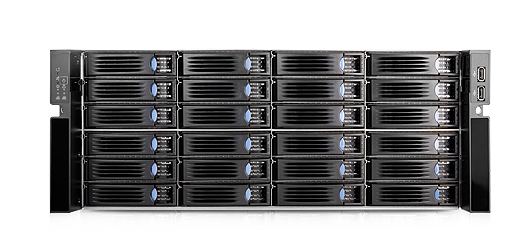

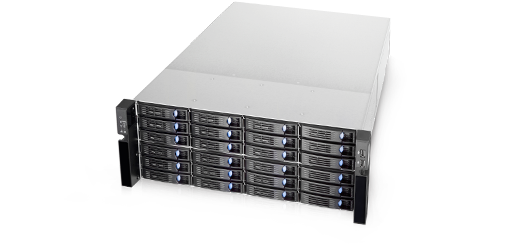

Featuring 24-bay 3.5" HDD/48-bay 2.5" HDD and 7 x FHFL PCIe slot, it reveals optimum storage and computing balance in a 4U form factor.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

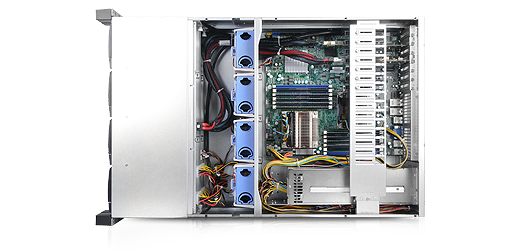

  • Supports M/B up to 12” x 13”

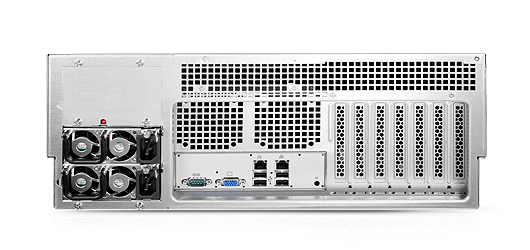

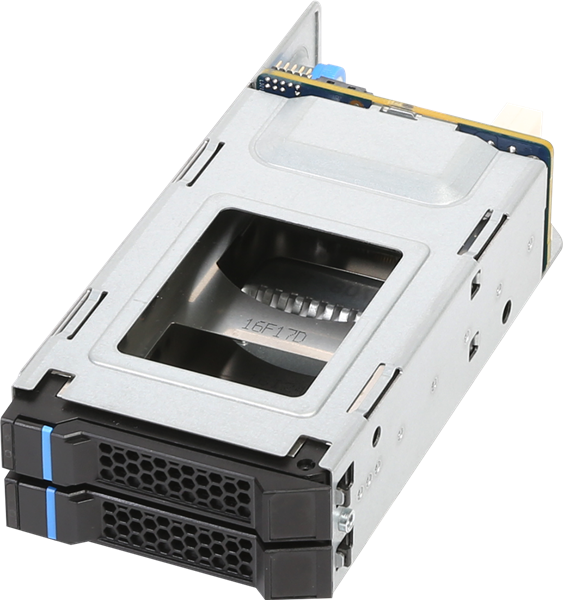

  • Supports modular 3.5” 12-bay and 2.5” 24-bay drive cages
  • 12Gb/s mini-SAS backplane with expander and SES2 support or 12Gb/s mini-SAS backplane
  • Card retainer to hold low profile and full height add-on cards
  • Optional rear 2 x 80mm exhaust fans
  • Built-in 4 x 80mm hot-swap PWM fans
  • Supports PS/2 single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor SSI EEB (12" x 13")
    Dimension (D x W x H) 699.0 x 432.0 x 175.8 (mm)
    27.52” x 17.00” x 6.92”
    Drive Bay RM41824 (3.5" Hot-swap):24
    RM41848 (2.5" Hot-swap):48
    Storage Backplane RM41824: 3.5” 24-port 12Gbps, Mini-SAS HD, Expander (1)
    RM41848 : 2.5” 24-port 12Gbps, Mini-SAS HD, Expander (2)
    PSU Form Factor PS/2 Single or N+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Status
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB2.0
    Cooling Fan Middle: 80 x 38 mm (4), Hot-swap
    Rear: 80 x 25 mm (2), Non Hot-swap, Option
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 7 x Full Height and Full Length
    Net Weight 37.0 kg/81.50 lb
    Gross Weight 38.0 kg/83.70 lb
    Cubic Feet 8.53
    Container Loading (Single Packing) 20': 105, 40': 215, 40'H: 258
  • Category Description Revision Size Download
    Datasheet RM418 Series Datasheet V1.2 1.2 MB
    Driver 6Gb/s SAS Expander with FW1401/0701, for Windows Server 2003 V1.1 576 Bytes
    Firmware Intel S2600CW SDR for SKU RM41824E2-R875CW X00 7.3 KB
    User Manual 6Gb/s 24-port 3.5" Expander Backplane(80H10341801A0), For 24-bay 3.5" Hot-swap HDD Cage V1.0 669.9 KB
    User Manual 6Gb/s 24-port 2.5" Expander Backplane(80H10341802A0, 80H10341803A0, 80H17341801A0), For 24-bay 2.5" Hot-swap HDD Cage V1.0 746.6 KB
    User Manual 6Gb/s 12-port 3.5" mini-SAS Expander Backplane(80H10323501A0), Rev.A0 V1.0 870.1 KB
    User Manual 6Gb/s 8-port 2.5" mini-SAS Backplane (80H10323406A0), Rev. A0 V1.0 362.2 KB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10321516A1), For 8-bay 3.5" Hot-swap HDD Cage V1.0 664.7 KB
    User Manual RM418 Series Quick Installation Guide V1.1 527.6 KB
  • Category Part. No# Description Support
    Bezel
    84H341810-025
    Front Panel, 4U, RM41824, Metal, Black(CC1012)
    Bracket
    84H341810-003
    Bracket, PSU, 4U, For G1W2-5960V3V & C2W-5820V
    Cable
    126-23612-3005A0
    Cable, Mini-SAS HD to Mini-SAS HD, 600mm
    HDD Cage
    384-23501-3100A0
    2.5" HDD cage, 24-port 12Gb/s EXP mini-SAS HD
    HDD Cage
    84H341810-007
    HDD CAGE, Slim ODD CAGE

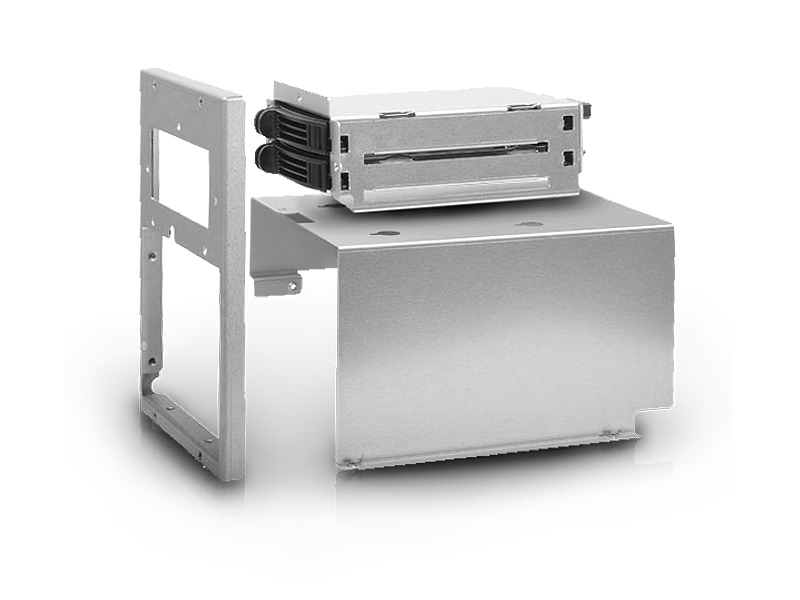

    HDD Cage
    84H341810-011
    HDD cage, 2.5" 2-bay, w/2-port 6Gbps SAS& SATA backplane(for G1W1-5960V3V)
    HDD Cage
    84H341810-035
    12BAY 3.5" 12port 12Gbps EXP Mini-SAS HD HDD Cage
    HDD Cage
    84H341810-037
    RM41824,MIX,2.5" HOT-SWAP O.S. HDD KIT,W/6G SAS,20BOX/CTN

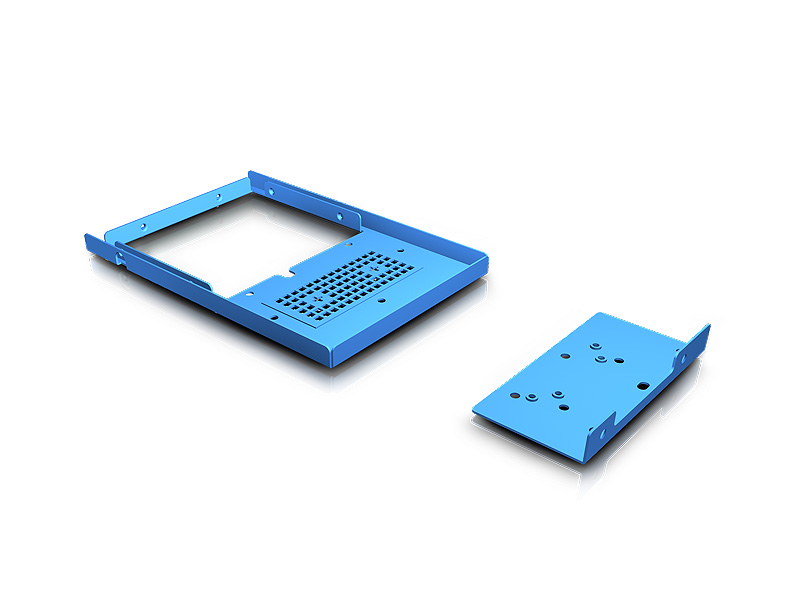

    Holder
    84H341810-039
    Internal 2.5" & 3.5" HDD HOLDER
    Power Supply
    32H2087501102
    PSU, 875w, 1+1 Redundant, Acbel, PM Bus V1.2
    Power Supply
    32H2097501101
    PSU, 975w, 1+1 Redundant, Acbel, PM Bus V1.2
    Slide Rail
    84H341810-002
    27“, P2P:28.8" to 40.8", Traveling Distance 27.7", Loading Weight 75 Kg, Non Tool-less
    Slide Rail
    84H341810-046
    27“, P2P:28" to 36", Traveling Distance 29", Loading Weight 75 Kg, Tool-less
