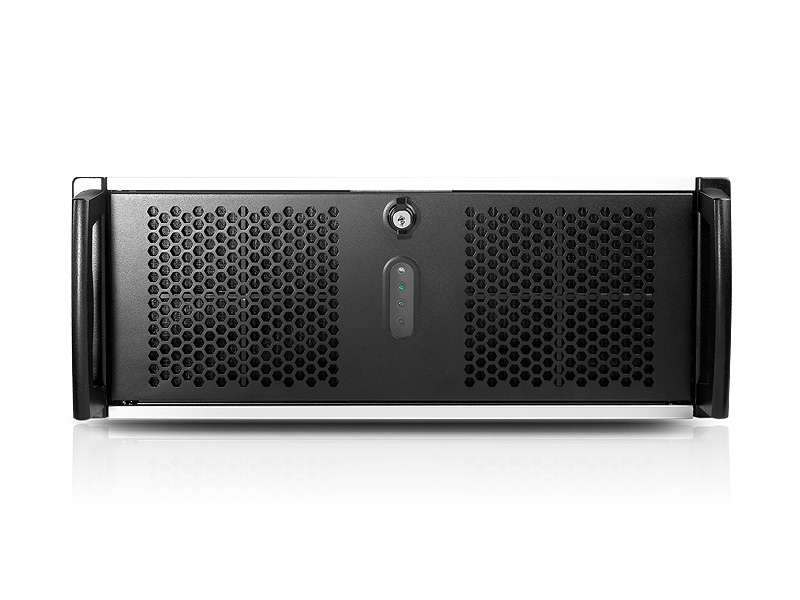

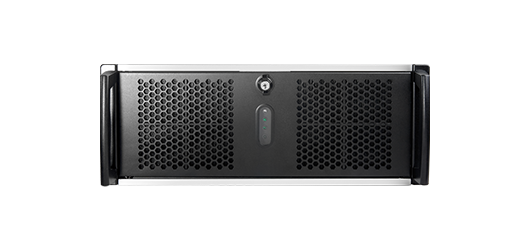

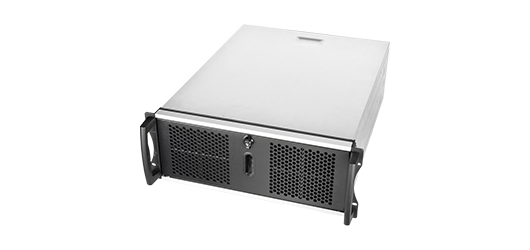

RM41300
4U High Performance Industrial Server Chassis
Equipped with entirely isolated anti-vibration drive cages, a dust-proof filter, and a reliable add-on card holder make it is ideal for high-performance IPC.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • RM41300 8-Slot upgrade to support CRPS & 2 GPU*

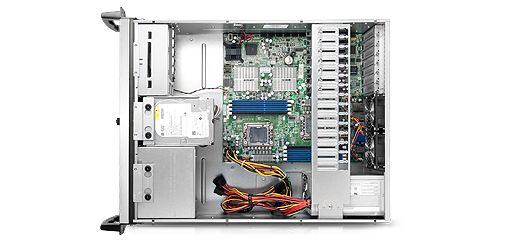

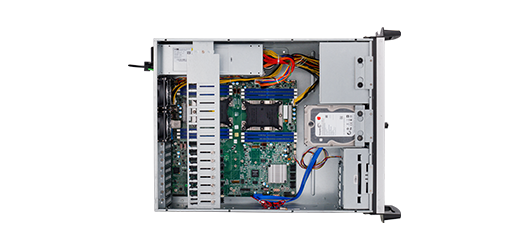

  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Dedicated 80mm fan for HDD cooling
  • Card retainer to hold low profile and full-height add-on cards (RM41300)
  • Supports stand-alone installation via an optional kit (RM41300)
  • Supports 1-door or 2-door front bezel configuration (RM41300)
  • *With an 8-slot rear window, if you want to install a GPU card whose TDP is up to 320W, please give a space between each card for better thermal performance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor EATX (12" x 13")
    Dimension (D x W x H) With front bezel: 563.7 x 430.0 x 176.0 (mm)
    Without front bezel: 543.7 x 430.0 x 176.0 (mm)
    Drive Bay External 5.25":3
    External 3.5":1
    Internal 3.5":4
    Slim ODD:1
    Storage Backplane N/A
    PSU Form Factor -PS/2 single
    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    Cooling Fan Front: 1 x 120 mm (120 x 25 mm), PWM
    Rear: 2 x 80 mm (Option)
    System Security Intrusion Switch (Option)
    Key Lock on Front Panel

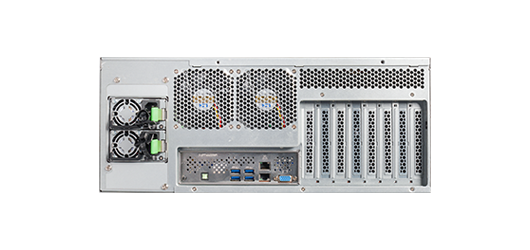

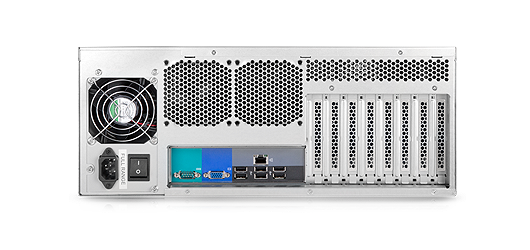

    Expansion Slot Opening 7 x Full Height and Full Length (*RM41300)
    8 x Full Height and Full Length (*RM41300G)
    Net Weight 12.5 kg/27.53 lb
    Gross Weight 15.5 kg/34.14 lb
    Cubic Feet 4.03
    Container Loading (Single Packing) 20’: 245, 40’: 524, 40’H: 592(single packing)
  • Category Description Revision Size Download
    Datasheet RM41300 datasheet v1.3 v1.3 697.3 KB
    Datasheet RM41300 Datasheet V1.2 11.5 MB
    User Manual RM41300 Quick Installation Guide V1.1 454.3 KB
    User Manual RM41300G Quick Installation Guide V1.1 290.8 KB
  • Category Part. No# Description Support
    Adapter
    66H243131-001

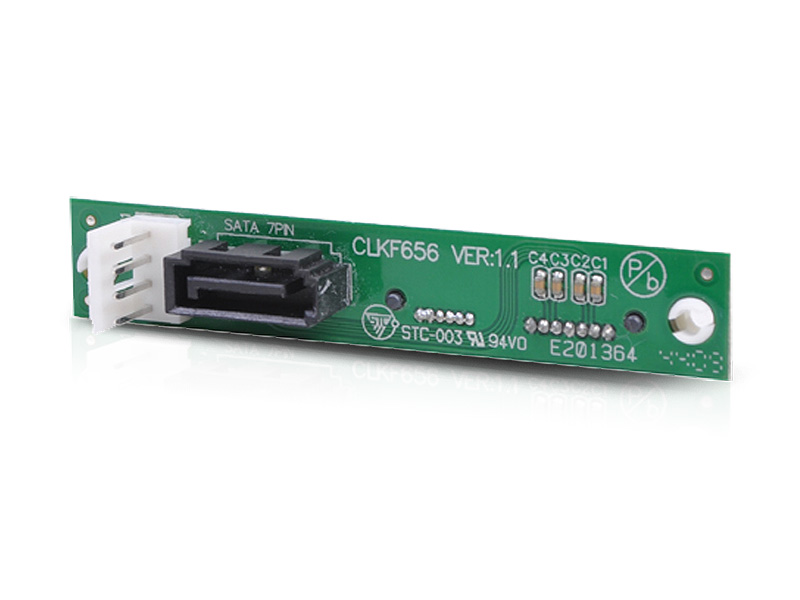

    Adapter, SATA to SATA, For Slim ODD

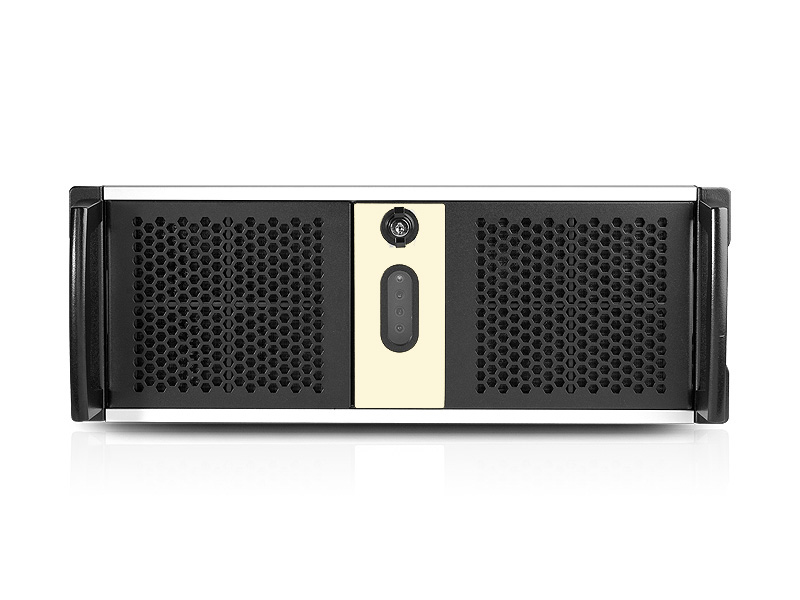

    Bezel
    84H341310-004
    Front Bezel, 4U, One-Door, RM41300/RM42300
    Bezel
    84H341310-005
    Front Bezel, 4U, 2-door, RM41300/RM42300
    Bracket
    84H341310-011
    Bracket, PSU, 4U,  For C2W-5620V / C2W-5820V
    Bracket
    84H341310-027
    Bracket, PSU, 4U, For R2IS7651A-G/R21S7871A-G

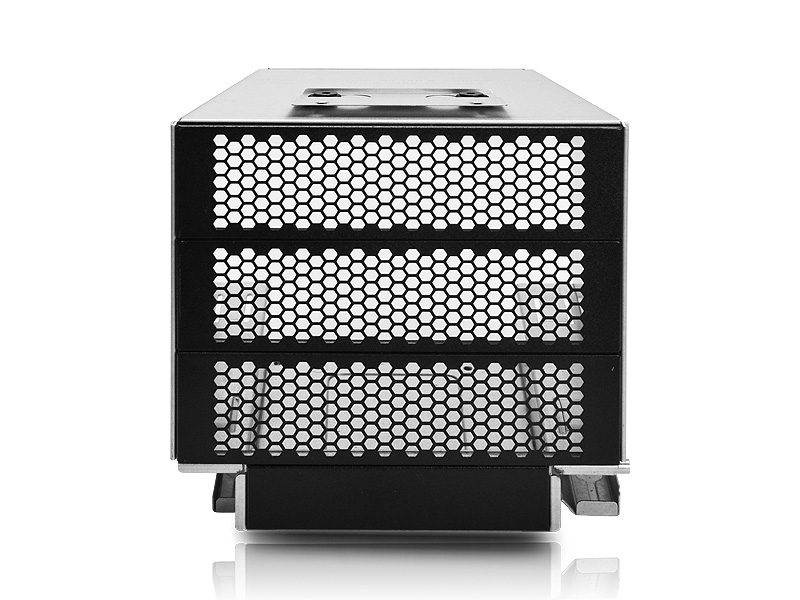

    Drive Cage

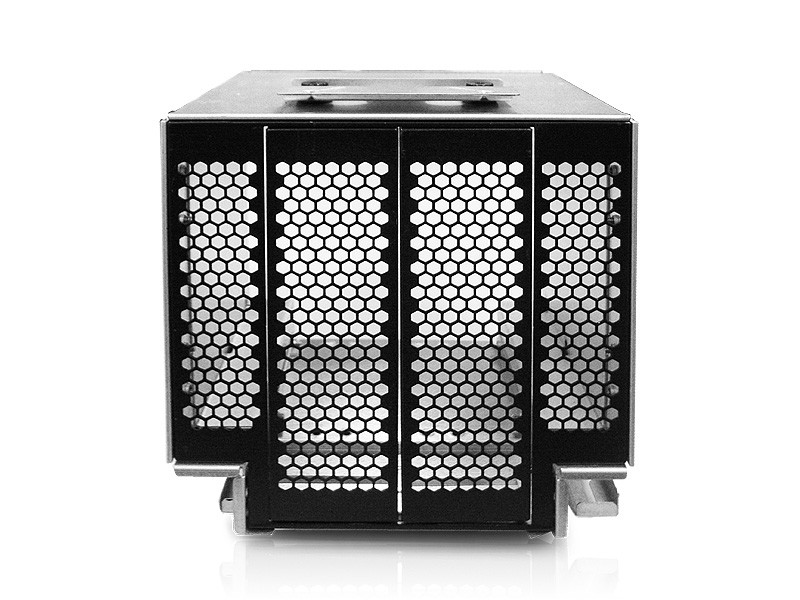

    84H342310-003
    Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012
    Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan

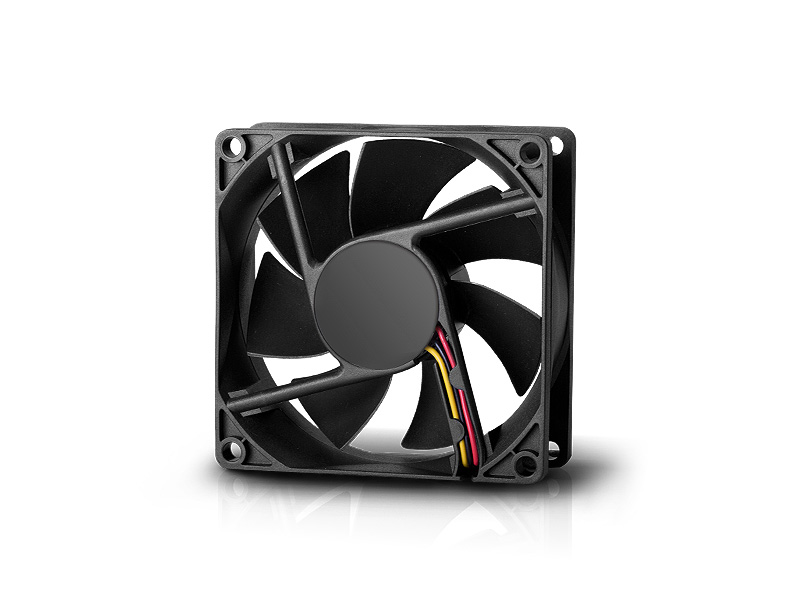

    84H000010-058
    80mm, 3P3C, T25, Ball Bearing, L650mm, W/Finger Guard/Screws

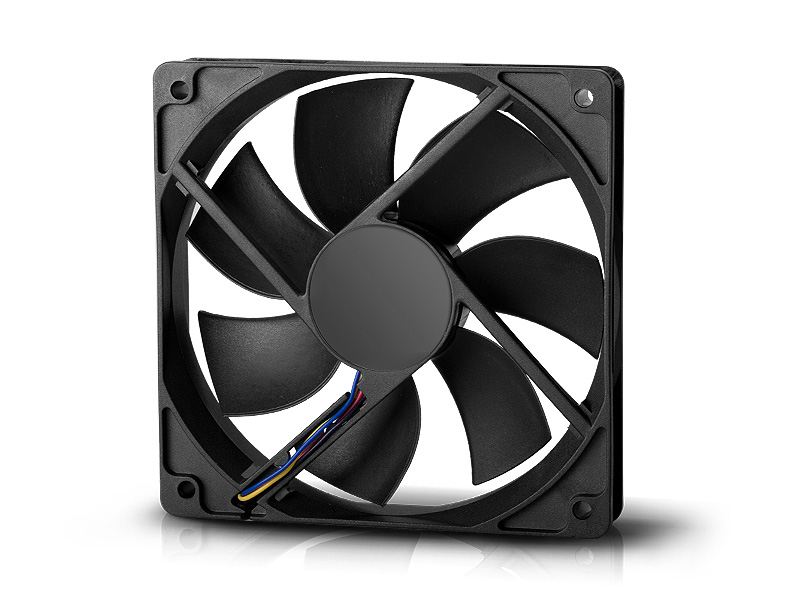

    Fan
    84H342310-004
    FAN Module, 120x25mm

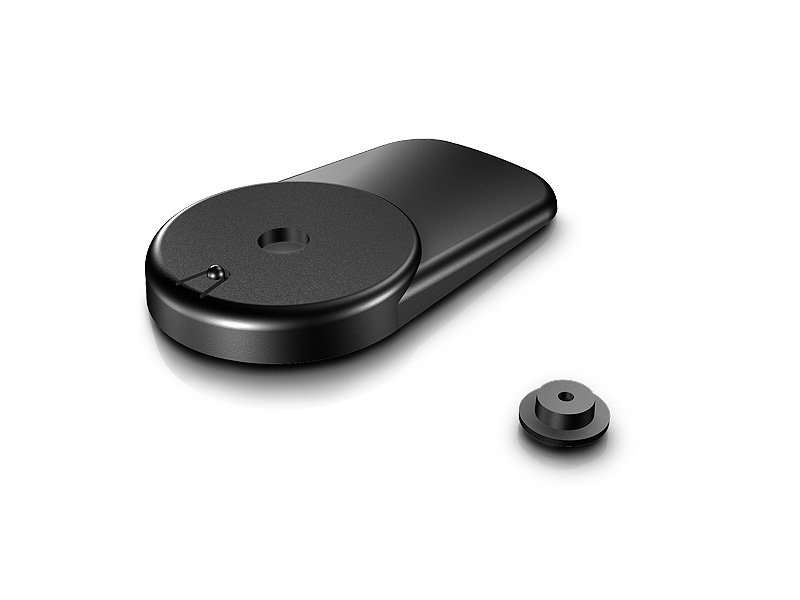

    Foot Stand
    84H342210-002
    Stand alone Kit, 4pcs/set, for RM42200
    Foot Stand
    88H341300-101
    4pcs/set, w/cabinet ear, for RM41300/RM42300
    Power Supply

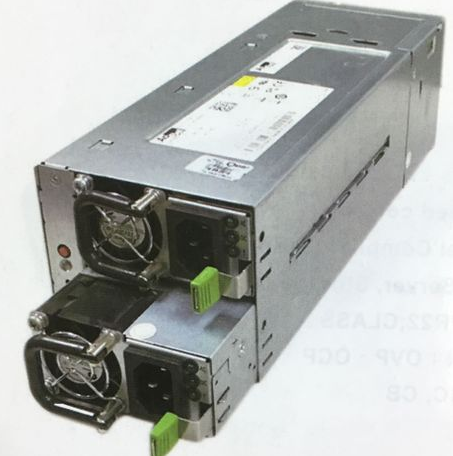

    132-20650-0701C

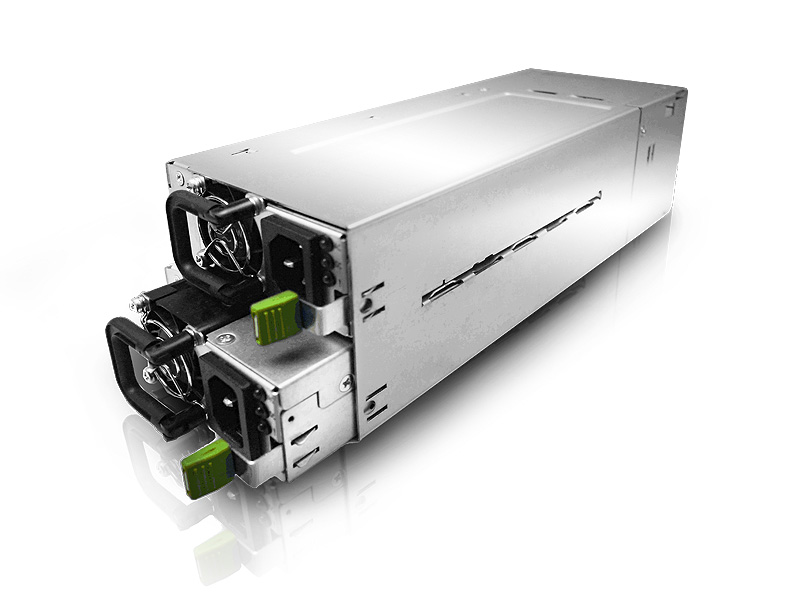

    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply

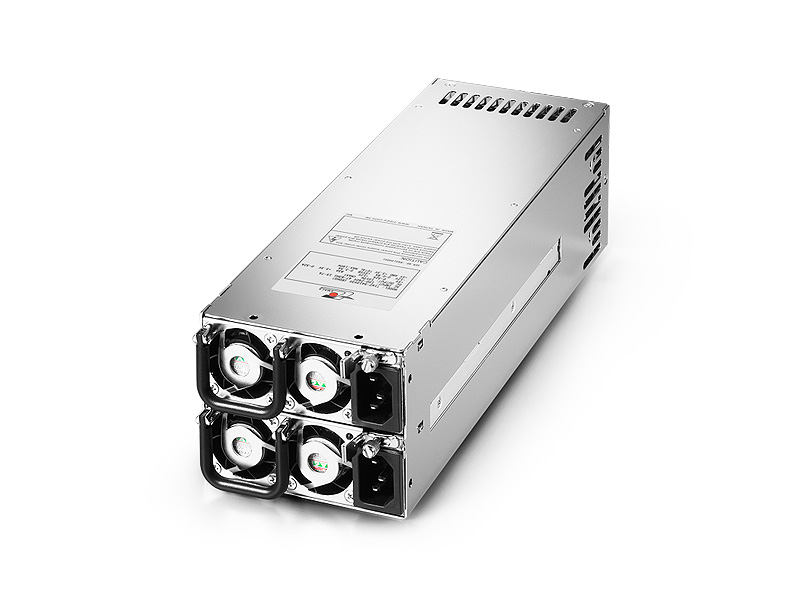

    32H2062000202
    PSU, 620w, 1+1 Redundant, C2W-5620V, PM Bus V1.1

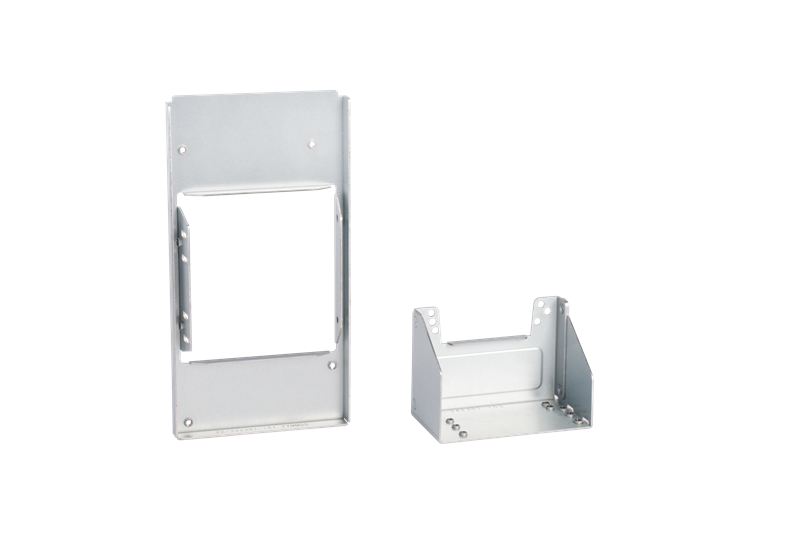

    PSU bracket
    384-MIX00430B0A0
    PSU bracket only

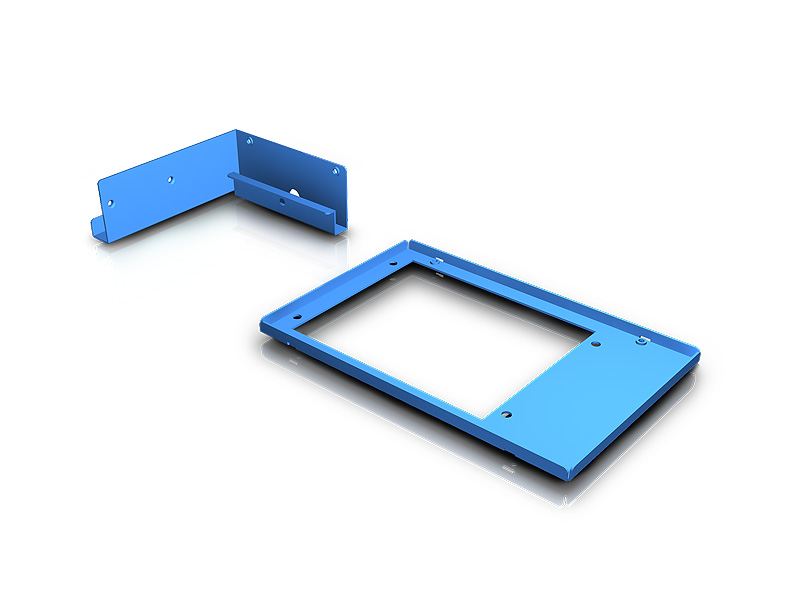

    Power bracket to support CRPS for FSP or Acbel
    PSU module+bracket
    384-PSU00025B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 1200W short version FSL026-7HBG
    PSU module+bracket
    384-PSU00026B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 1200W long version R2CU5122A

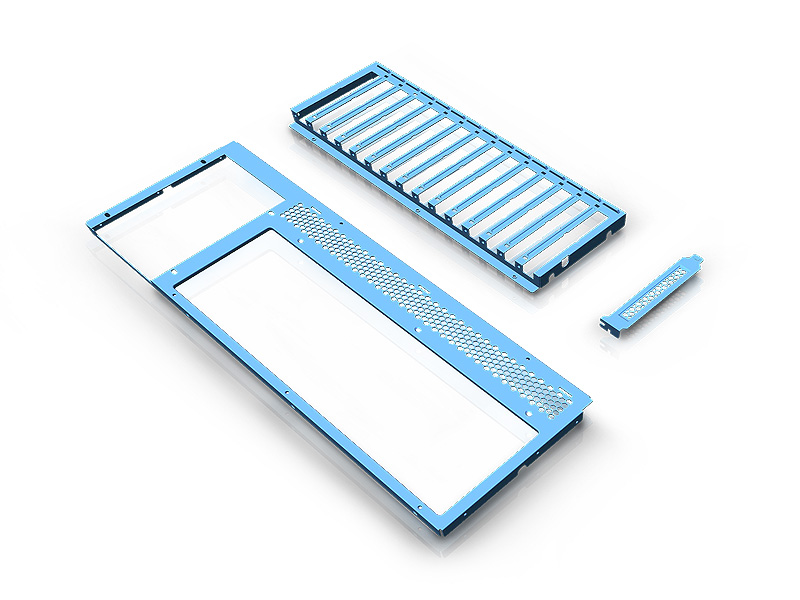

    Rear Window
    84H342310-005
    Rear window, 15-slot, w/slot brackets, RM41300/RM42300

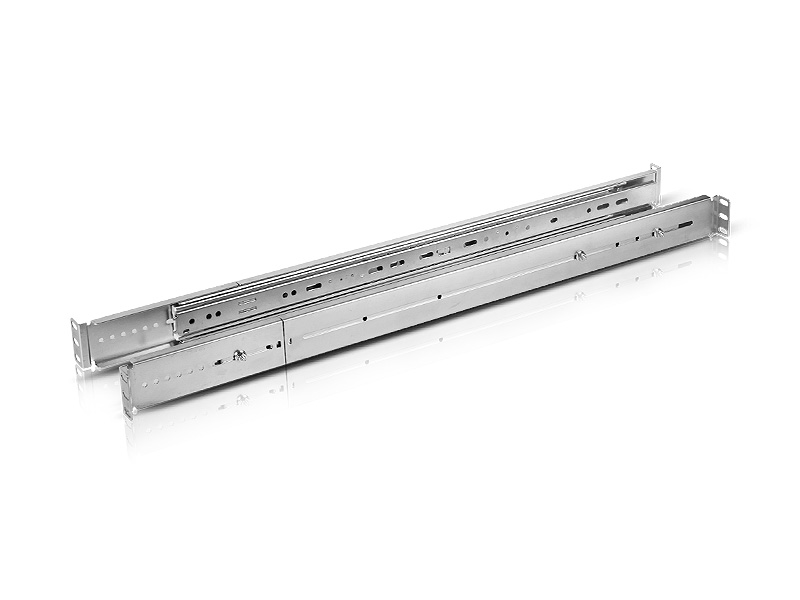

    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
