RM31616

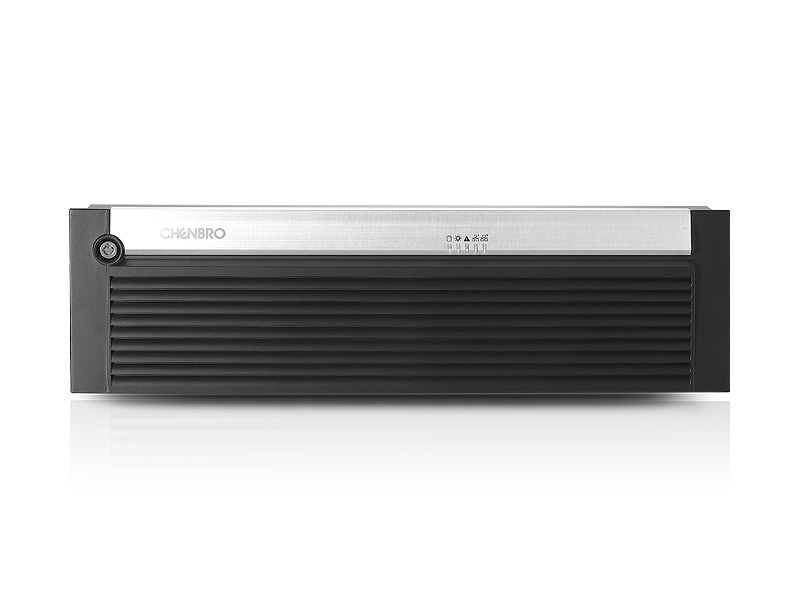

3U 16-bay High Dense Storage Server Chassis
Featuring sixteen hot-swap HDD bays, 6Gb/s backplane, redundant PSU and anti-vibration fans provide reliability and performance of large enterprise.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

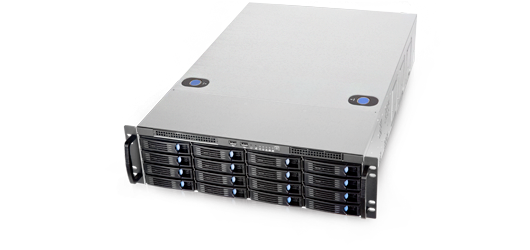

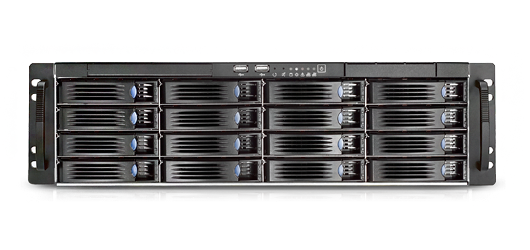

  • Supports 16 x 3.5" hot-swap HDDs, slim ODD, and slim FDD

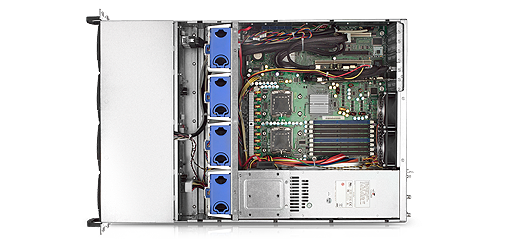

  • Innovative anti-vibration fan bar for middle hot-swap fan
  • Optional 2.5” OS HDD with SK51101 or SK51102
  • Optional bracket for internal 3.5” or 2.5” HDD
  • Supports 12Gb/s 16-port Expander backplane
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 3U
    M/B Form Factor Extended ATX (12”x13”)
    Dimensions (Dx Wx H) 660 x 432 x 132 (mm), 26” x 17” x 5.2”
    Drive Bays Slim FDD:1
    Slim ODD:1
    3.5" Hot-swap:16
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 1 x LAN Activity , 1 x Fan Failure and Overheat
    Front Buttons Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0/ USB3.0 (Option)
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm (T=38mm), Hot-swap , Rear: 2 x 80mm (Option)

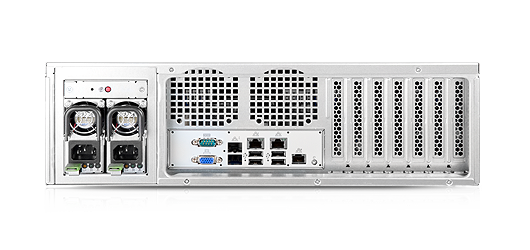

    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS HD w/Expander
    Metal Thickness 1.2mm
    Net Weight 15.2kg
    Gross Weight 19.4kg
    Front Bezel Option
    Cubic Feet 5.07
    Container Loading (Single Packing) 20’: 196, 40’: 404, 40’H: 454
  • Category Description Revision Size Download
    Datasheet RM31616 Datasheet V1.2 1.0 MB
    Firmware Intel S2600CW SDR for SKU RM31616E2-R875CW X00 7.2 KB
    User Manual 3Gb/s 16-port 3.5" mini-SAS Backplane(80H103316-001), Rev. A2/B0 V1.0 265.1 KB
    User Manual 6Gb/s 16-port 3.5" mini-SAS Backplane(80H10331604A0) V1.0 648.0 KB
    User Manual 6Gb/s 16-port 3.5" mini-SAS Expander Backplane(80H10331605A0) V1.0 2.9 MB
    User Manual LED Board(80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM31616 Quick Installation Guide V1.1 544.0 KB
  • Category Part. No# Description Support
    Bezel
    84H331610-016
    Front Bezel, 3U, Plastic, SilFox
    Bezel
    84H331610-032
    Front Bezel, 3U, Plastic, Bricker
    Bracket
    84H331610-006

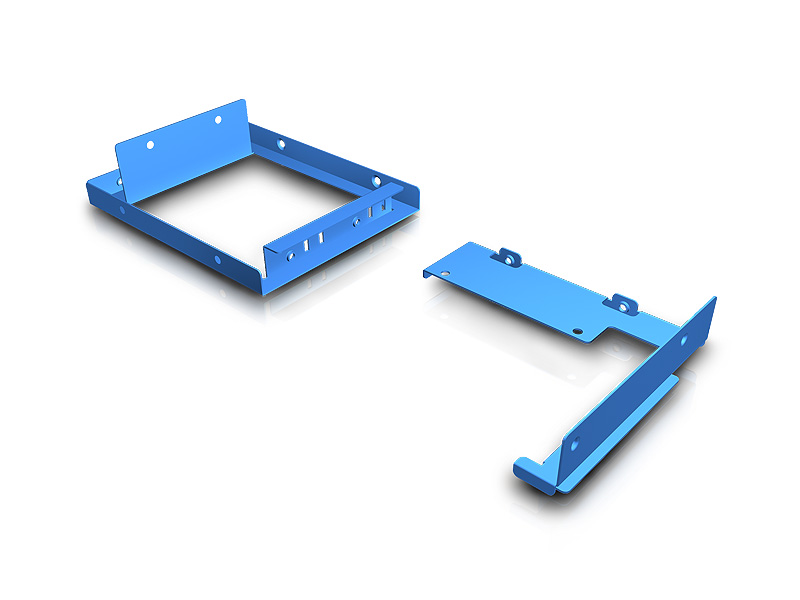

    Bracket, 2x2.5" Bays, Internal, For ZIPPY M1Z3-6760P3V
    Bracket
    84H331610-007

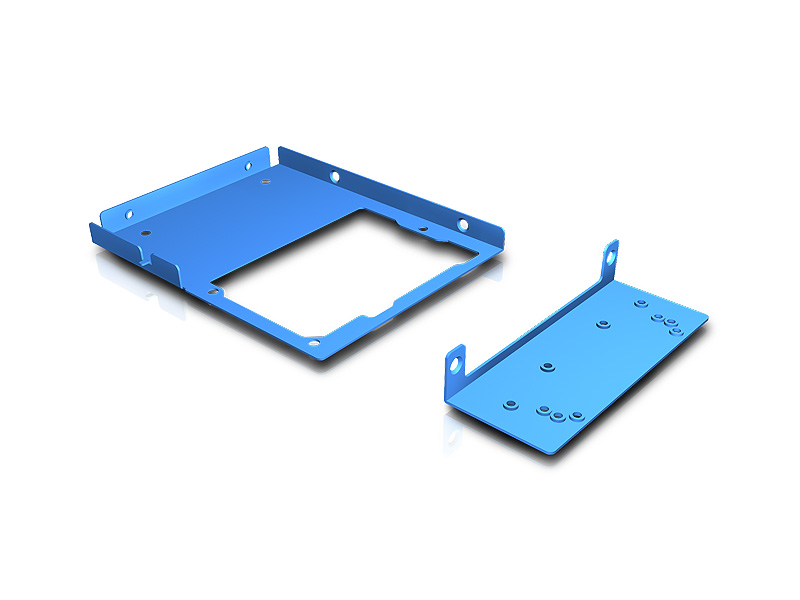

    Bracket, HDD, 2x2.5" or 1x 3.5" bay, Internal
    Bracket
    84H331610-008
    Bracket, PSU, 3U, For M1Z3-6760P3V / M1Z3-6800P3V
    Bracket
    84H331610-019
    Bracket, PSU, 3U, For P2M-5800V 80+
    Bracket
    84H331610-021
    Bracket, PSU, 3U, For C2W-5620V/C2W-5820V
    Bracket
    84H331610-042

    Bracket, PSU, 3U, For R2IS7651A/R21S7871A

    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U

    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM31616E2 12"x13" 6Gb/s Expander Option 7-Slot,FF Option
    RM31616E2-R875 12"x13" 6Gb/s Expander 875W(Redundant) 7-Slot,FF Option
    RM31616E2-R875CW S2600CW 6Gb/s Expander 875W(Redundant) 7-Slot,FF Option
    RM31616M2 12"x13" 6Gb/s mini-SAS Option 7-Slot,FF Option
    RM31616M2-R875 12"x13" 6Gb/s mini-SAS 875W(Redundant) 7-Slot,FF Option
