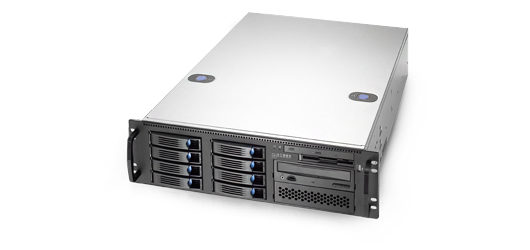

RM31408
3U General-Purpose Server Chassis

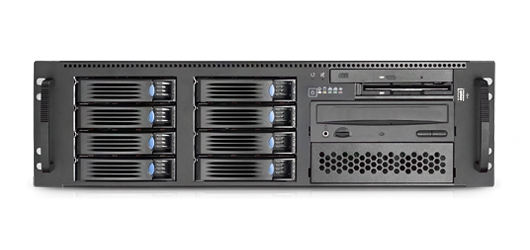

Equipped with eight 3.5" hot-swap HDD bays , one 3.5" FDD and two 5.25" ODD bays make it affordable for a general-purpose server.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”
  • Supports 12Gb/s mini-SAS HD backplane
  • Versatile configurations available via exposed 2 x 5.25” and 1 x 3.5” bays
  • Built-in 4x hot-swap middle fans
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor SSI EEB (12" x 13")
    Dimension (D x W x H) 659.6 x 430.0 x 131.9 (mm)
    25.96” x 16.93” x 5.19”
    Drive Bay External 5.25":2
    External 3.5":1
    3.5" Hot-swap:8
    Storage Backplane 3.5" 4-port 12Gbps, Mini-SAS HD (2)
    PSU Form Factor 2U Single or N+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Status
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    1 x USB2.0/USB3.0 (Option)
    Cooling Fan Middle: 80 x 32 mm (4), Hot-swap
    Rear: 60 x 25 mm (2), Non Hot-swap, Option
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 7 x Full Height and Full Length
    Net Weight 13.2 kg/29.1 lb
    Gross Weight 17.3 kg/38.1 lb
    Cubic Feet 5.07
    Container Loading (Single Packing) 20’: 196, 40’: 404, 40’H: 454
  • Category Description Revision Size Download
    Datasheet RM31408 Datasheet V1.2 1.3 MB
    User Manual 3Gb/s 4-port 3.5" SATA/SAS Backplane(80H102209-010) V1.0 185.1 KB
    User Manual 3Gb/s 4-port 3.5" SATA/SAS Backplane(80H102209-010), Rev.B0 V1.0 181.3 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H102209-013) V1.0 251.5 KB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10331404A0) V1.0 360.3 KB
    User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane(80H10331405A0) V1.0 324.3 KB
    User Manual 3Gb/s 4-port 3.5" SATA/SAS Backplane(80H103314-002), Rev. A1 V1.0 178.9 KB
    User Manual RM31408 Quick Installation Guide V1.1 493.0 KB
  • Category Part. No# Description Support

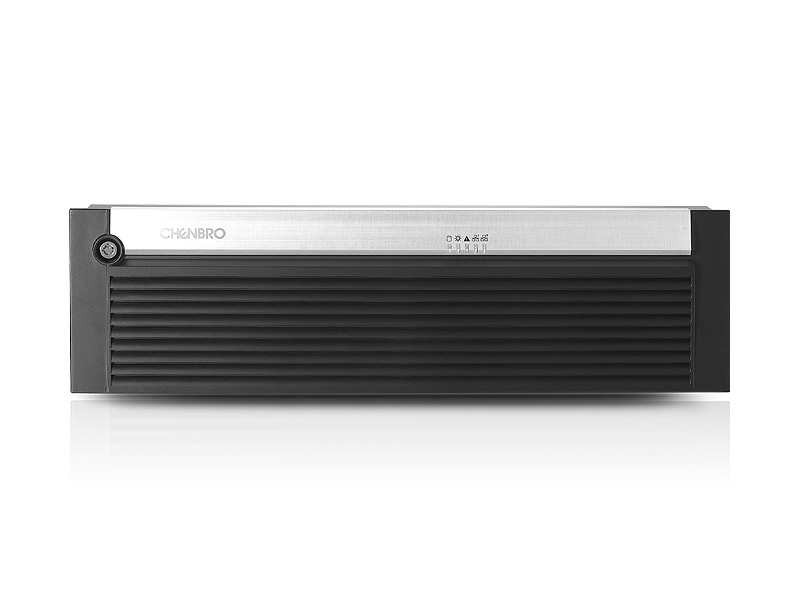

    Bezel
    84H331410-008

    Front Bezel, 3U, Plastic, SilFox

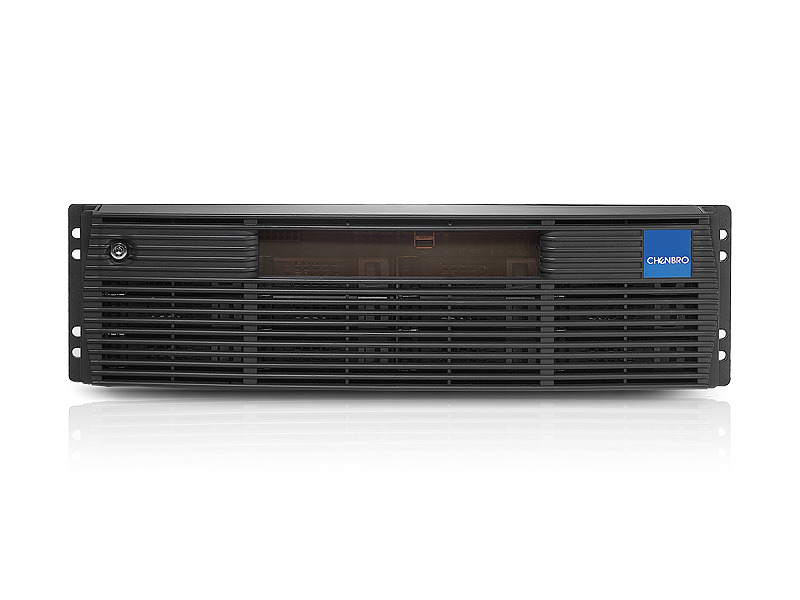

    Bezel
    88H331200-001
    Front Bezel, 3U, Plastic

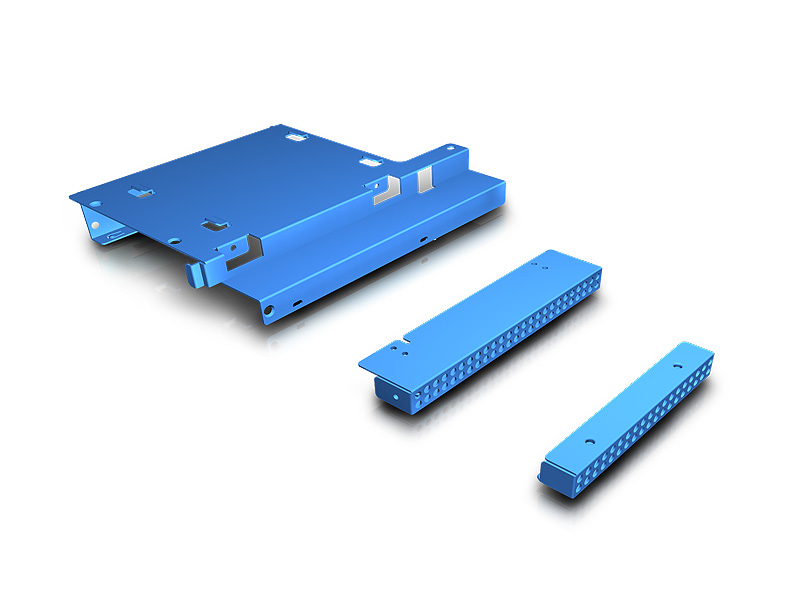

    Bracket
    84H321410-009
    Bracket, Slim FDD& Slim ODD Bays
    Bracket
    84H331210-013
    Bracket, PSU, 3U, For P2G-6510P/SS460H2U /P2H-5500V 80+ / P2G-5650V 80+
    Bracket
    84H331410-037
    Bracket, PSU, 3U, For R2IS7651A-G
    Cable
    126-23612-3005A0
    Mini-SAS HD to Mini-SAS HD, 600mm

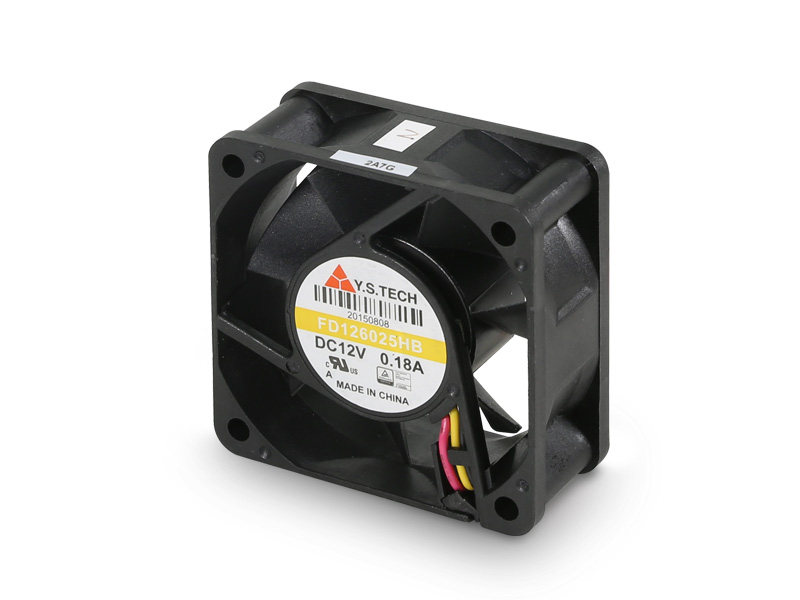

    Fan
    84H000010-049
    60mm, 3P3C, T25, Ball Bearing, L300mm, W/Finger guard/Screws, For Rear Window
    PCB
    84H331410-025
    6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    Power Supply
    132-20650-0701C0
    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply
    32H151002-002
    510W P2G-6510P (Chenbro Special)
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code Storage Backplane USB PSU Back Panel Slide Rail
    RM31408M3 12Gb/s mini-SAS HD 1 X USB 2.0 Option 7-Slot,FF Option
    RM31408M3-G 12Gb/s mini-SAS HD 1 X USB 3.0 Option 7-Slot,FF Included
