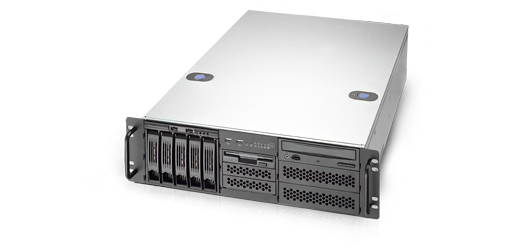

RM31300 (EOL)
3U Open Bay Server Chassis
It is designed with flexibility of utilizing six 5.25” drive bays to install ODD, tape drive and Chenbro SK family.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”

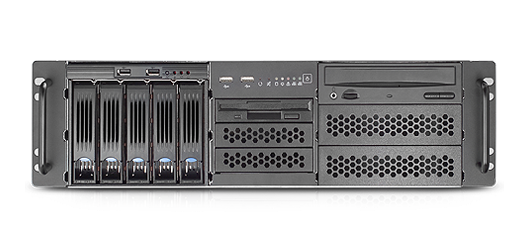

  • Exposed 6 x 5.25” and 3 x 3.5” bays for maximum configuration flexibility
  • Compatible with CHENBRO SK family for HDD hot-swap function
  • Optional 4 x hot-swap fan modules
  • Tool-less design for 5.25” device installation
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 3U

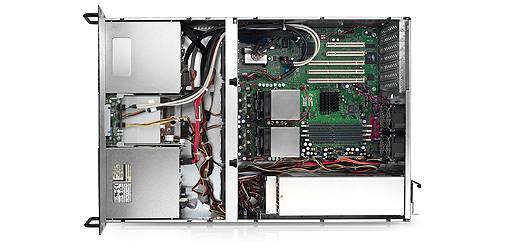

    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660 x 430 x 132 (mm), 26” x 16.9” x 5.2”
    Drive Bays External 5.25":6
    External 3.5":3
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm (T=32mm), Rear: 2 x 80mm (T=25mm) (Option)

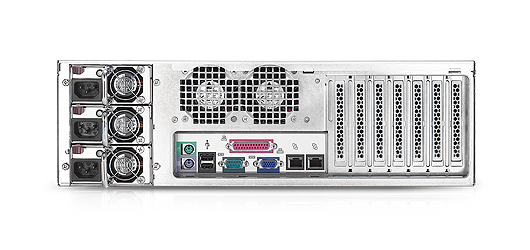

    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane N/A
    Metal Thickness 1.2mm
    Net Weight 12.3kg
    Gross Weight 16.4kg
    Front Bezel Option
    Cubic Feet 5.07
    Container Loading (Single Packing) 20’: 196, 40’: 404, 40’H: 454
  • Category Description Revision Size Download
    Datasheet RM31300 Datasheet V1.2 1.2 MB
    User Manual LED Board(80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM31300 Quick Installation Guide V1.1 426.6 KB
  • Category Part. No# Description Support

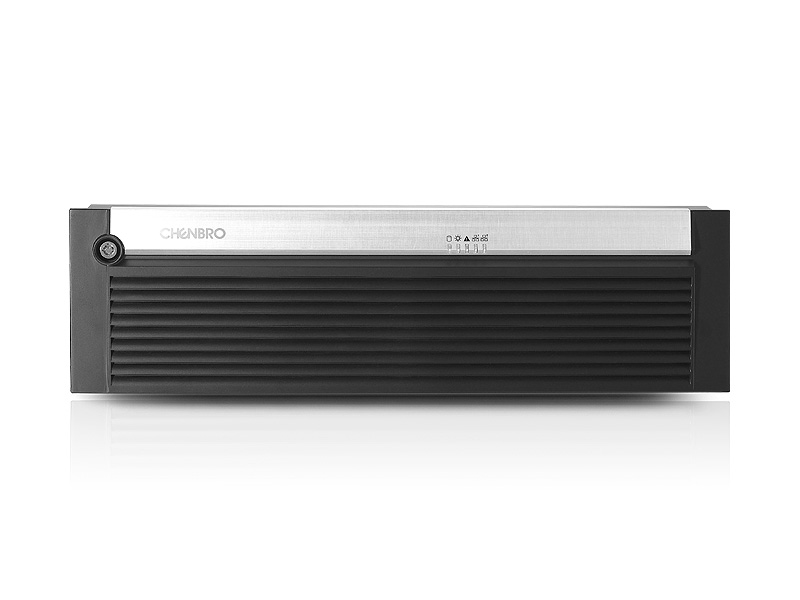

    Bezel
    84H331310-001
    Front Bezel, 3U, Plastic, SilFox
    Bezel
    84H331610-032
    Front Bezel, 3U, Plastic, Bricker
    Bezel
    88H331200-001
    Front Bezel, 3U, Plastic

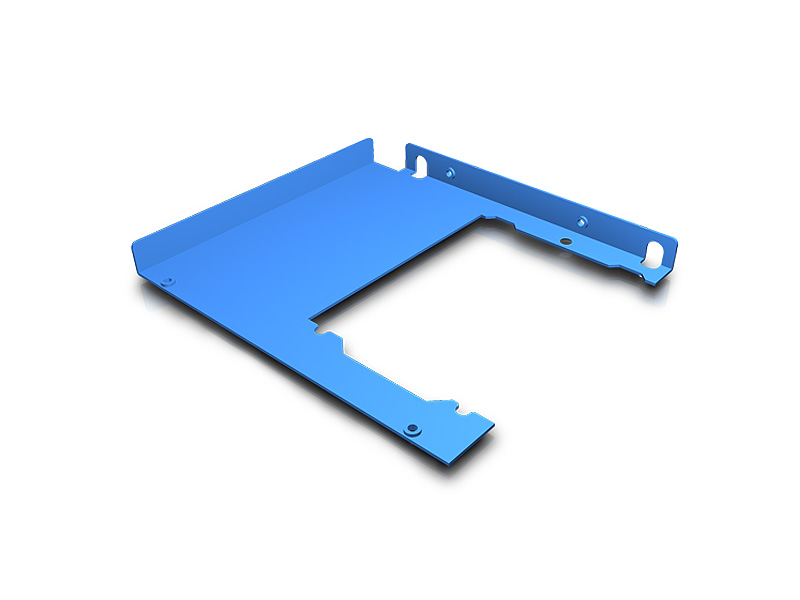

    Bracket
    84H331210-013
    Bracket, PSU, 3U, For P2G-6510P/SS460H2U /P2H-5500V 80+ / P2G-5650V 80+
    Bracket
    84H331310-009
    Bracket, PSU, 3U, For C2W-5620V/C2W-5820V

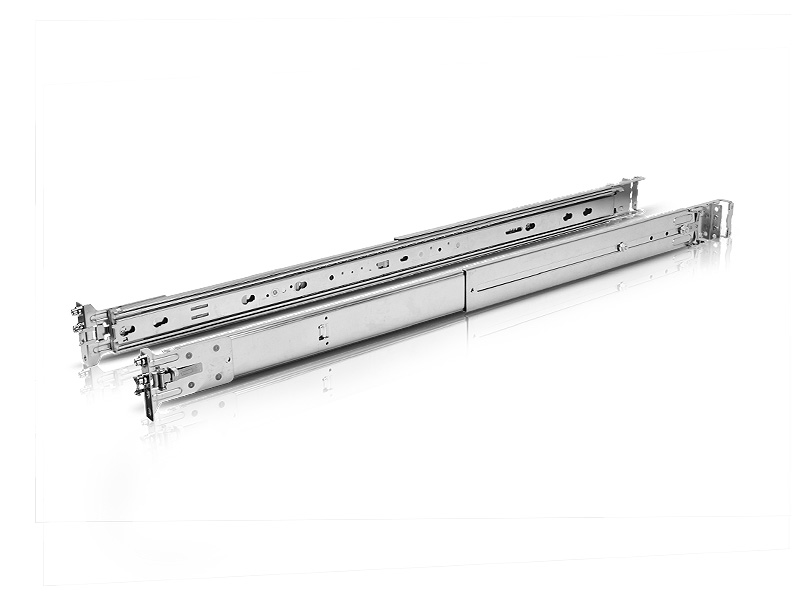

    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U

    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM31300 12"x13" N/A Option 7-Slot,FF Option
