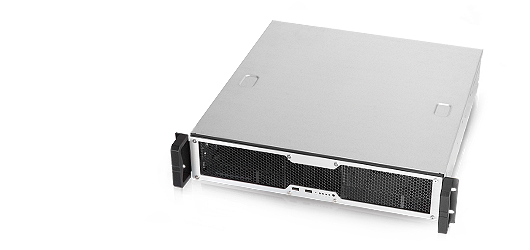

RM24200
2U High Flexibility Industrial Server Chassis
With rear access PS/2 PSU, anti-vibration drive cage, and exchangeable front bezel, it is a cost-competitive solution for industrial applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Depth 18” of chassis for space-sensitive applications
  • Optimized fan placement for better cooling performance
  • Cushion on drive cages to depress HDD& ODD vibration

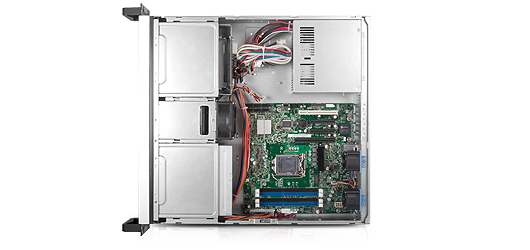

  • Removable drive cages for easy installation
  • Supports PS/2 PSU and other standard components to lower TCO
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor uATX (9.6” x 9.6”)
    Dimensions (D x W x H) 457.0 x 430.0 x 88.1 (mm)
    18.00” x 16.93” x 3.47”
    Drive Bay External 5.25":2
    External 3.5":1
    Slim ODD:1
    Internal 2.5":2
    Storage Backplane N/A

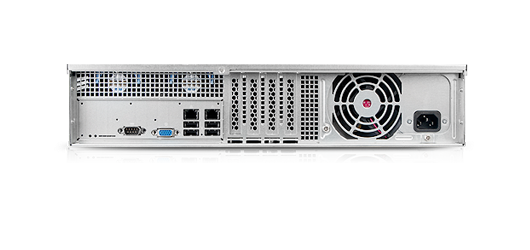

    PSU Form Factor PS/2 Single (Rear)
    Indicator 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    Cooling Fan Middle: 80 x 32 mm (1)
    Rear: 40 x 28 mm (2), Option
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 4 x Low Profile
    Net Weight 6.9 kg/15.2 lb
    Gross Weight 9.3 kg/20.48 lb
    Cubic Feet 2.50
    Container Loading (Single Packing) 20’: 388, 40’: 788, 40’H: 940
  • Category Description Revision Size Download
    Datasheet RM24200 Datasheet V1.2 1.1 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM24200 Quick Installation Guide V1.1 589.3 KB
  • Category Part. No# Description Support
    Cable
    26H11324102A0
    Cable, PSU, Wire Extension, 24P to 24P, 250mm
    Cable
    26H11324103A0
    Cable, PSU, Wire Extension, 8P to 4P+4P, 400mm
    Cable
    84H324110-010
    Cable, Intrusion, 2-Pin, 500mm
    Drive Cage
    84H324110-007
    Drive cage, 1x5.25"+1x slim ODD bays, exposed
    Drive Cage
    84H324110-008
    Drive cage, 1x5.25"+1x3.5" bays, exposed
    Fan
    84H324210-003
    FAN, 1pcs, AVC 40x28 Ball Bering, L310mm (4P4C), For Rear Window
    Fan
    84H324210-004
    Fan, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), for Rear Window
    Power Supply
    32H1030000706
    PSU, 300w, PS/2 single, FSP300-70PFL, 80+, w/80mm fan
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B PSU Back Panel Slide Rail Front Panel
    RM24200-L 9.6"x9.6" Option 4-Slot,LP Option Aluminum Frame

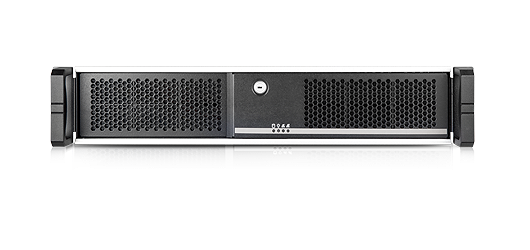

    RM24200-L2 9.6"x9.6" Option 4-Slot,LP Option 2-Door Type
    RM24200-L2U3 9.6"x9.6" Option 4-Slot,LP Option 2-Door Type
