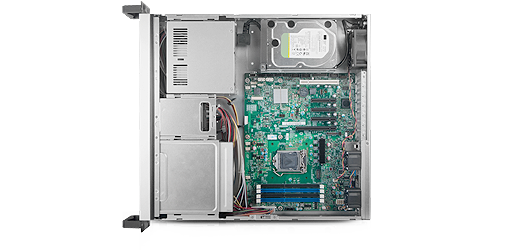

RM24100

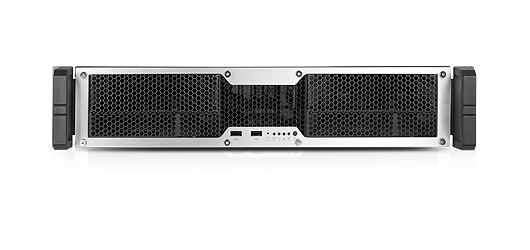

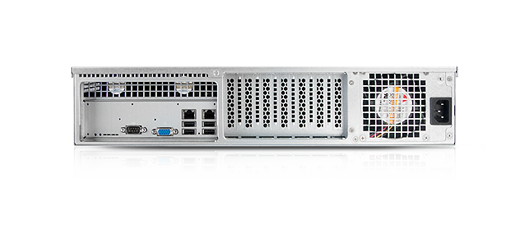

2U Feature-advanced Industrial Server Chassis
With supporting front-set PS/2 PSU, anti-vibration drive cage and dust-proof front bezel in depth 18", it delivers a trusted platform for industrial applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Depth 18” of chassis for space-sensitive applications
  • Modular 3-slot riser or 7-slot low profile rear window for flexible configuration
  • Cushion on 3.5” and 2.5” HDD cages to depress HDD vibration
  • Removable drive cages for easy installation
  • Supports PS/2 PSU and other standard components to lower TCO
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    M/B Form Factor ATX (12” x 9.6”)
    Dimensions (Dx Wx H) 457.2 x 430 x 88.1 (mm) , 18” x 16.9” x 3.5”
    Drive Bays External 5.25":1
    External 3.5":1
    Internal 3.5":2
    Internal 2.5":2
    PSU Form Factor PS/2 Single (Front)
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity
    Front Control Power On/Off, System Reset, 2 x USB2.0/ USB3.0 (Option)
    System Security Intrusion switch (Option)
    Cooling Fans Front: 1 x 80mm (T=32mm) (Option)
    Rear: 1 x 80mm (T=32mm), 2 x 40mm (T=28mm) (Option)
    Expansion Slots 3 x Full Height or 7 x Low Profile
    HDD Backplane N/A
    Net Weight 6.9kg
    Gross Weight 9.4kg
    Front Bezel Aluminum bezel frame or two-door bezel with air filter
    Cubic Feet 2.5
    Container Loading (Single Packing) 20’: 388, 40’: 788, 40’H: 940
  • Category Description Revision Size Download
    Datasheet RM24100 Datasheet V1.2 1.1 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 1.3 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM24100 Quick Installation Guide V1.1 574.7 KB
  • Category Part. No# Description Support
    Cable
    26H11324102A0

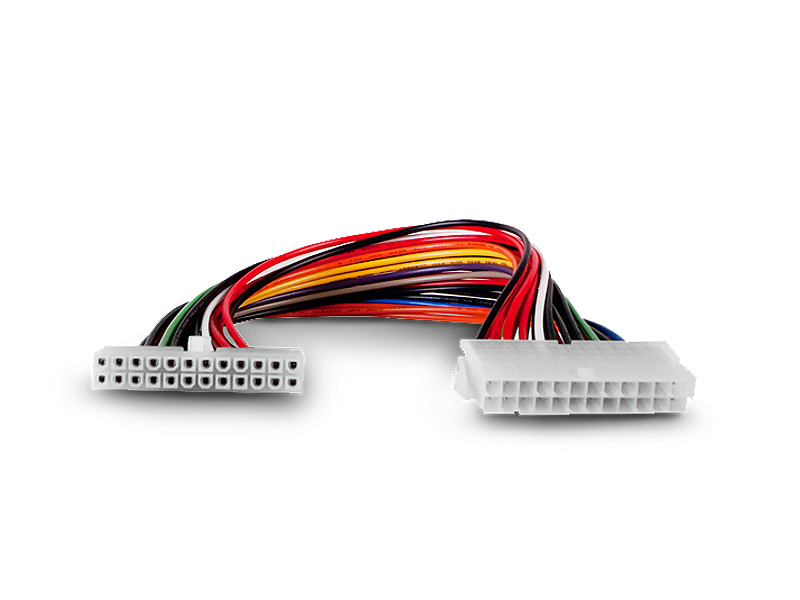

    Cable, PSU, Wire Extension, 24P to 24P, 250mm
    Cable
    26H11324103A0

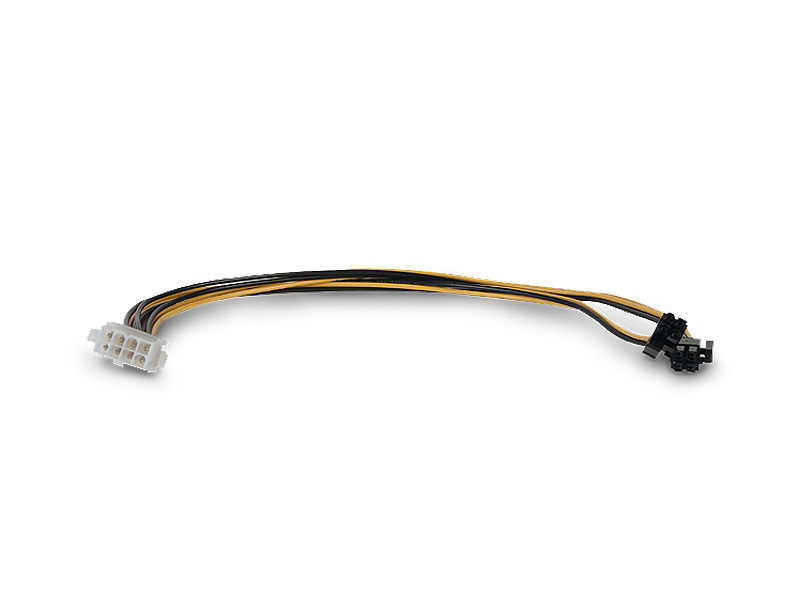

    Cable, PSU, Wire Extension, 8P to 4P+4P, 400mm
    Cable
    84H324110-010
    Cable, Intrusion, 2-Pin, 500mm
    Drive Cage
    84H324110-007

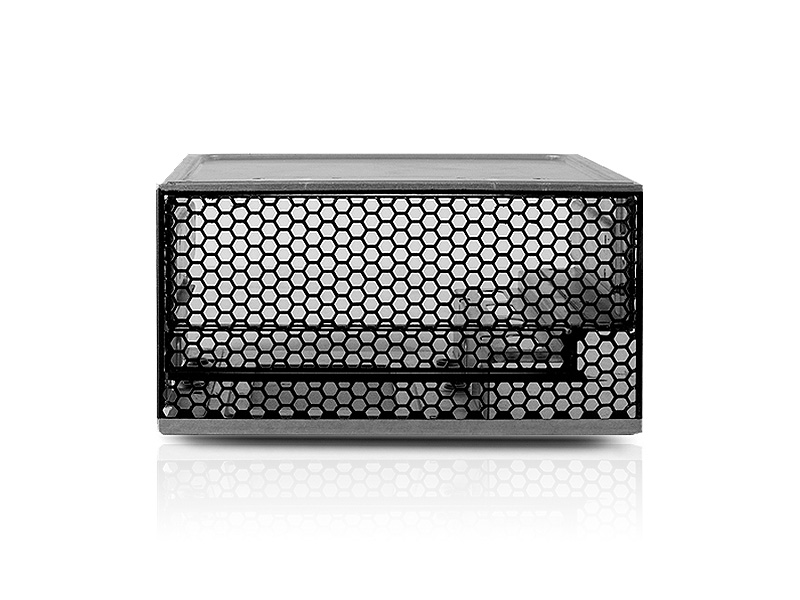

    Drive cage, 1x5.25"+1x slim ODD bays, exposed
    Drive Cage
    84H324110-008
    Drive cage, 1x5.25"+1x3.5" bays, exposed
    Fan

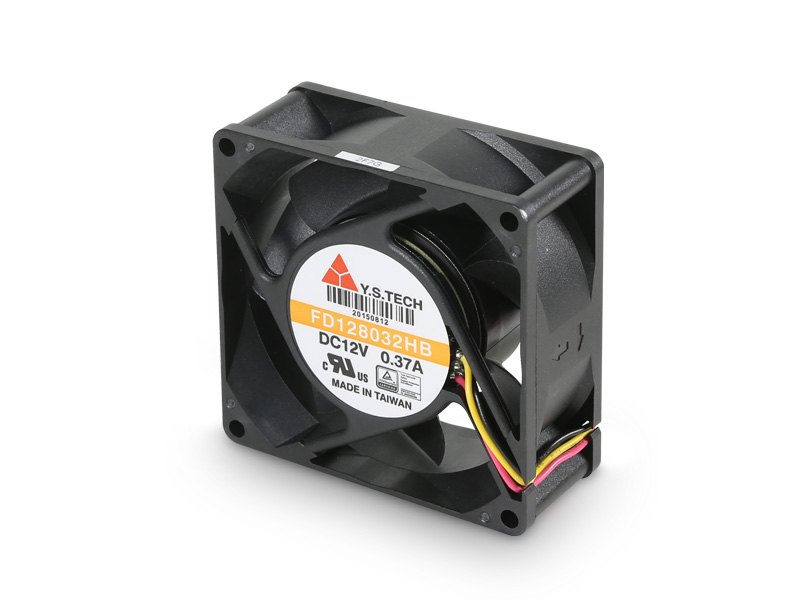

    30H080032-101
    FAN, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), For Rear Window
    Fan
    30H080032-112
    FAN, 1pcs YS 80x32 Ball Bering , L300mm (4P4C),For Rear Window
    Fan
    84H324110-009
    FAN, 1pcs AVC 40x28 Ball Bering, L310mm (4P4C), w/ fan guard For Rear Window
    Power Supply
    32H1030000706

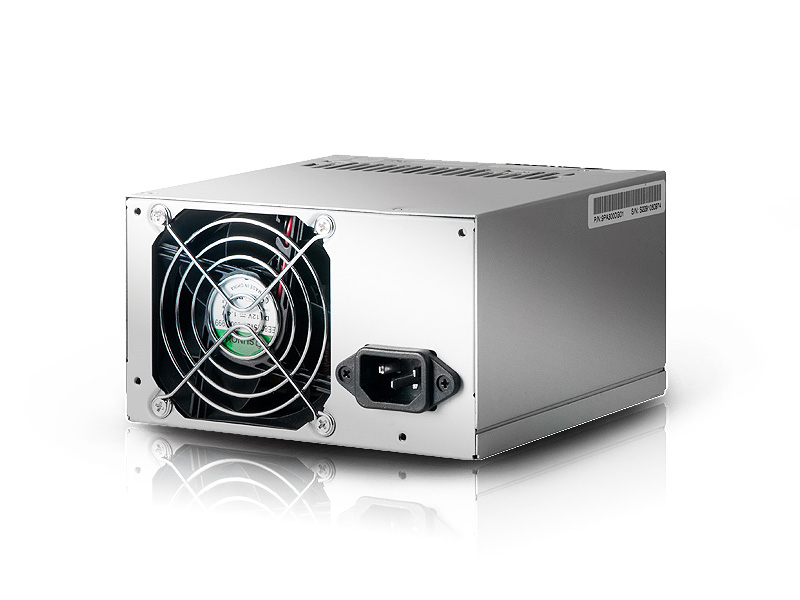

    PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan
    Power Supply
    32H1030001104

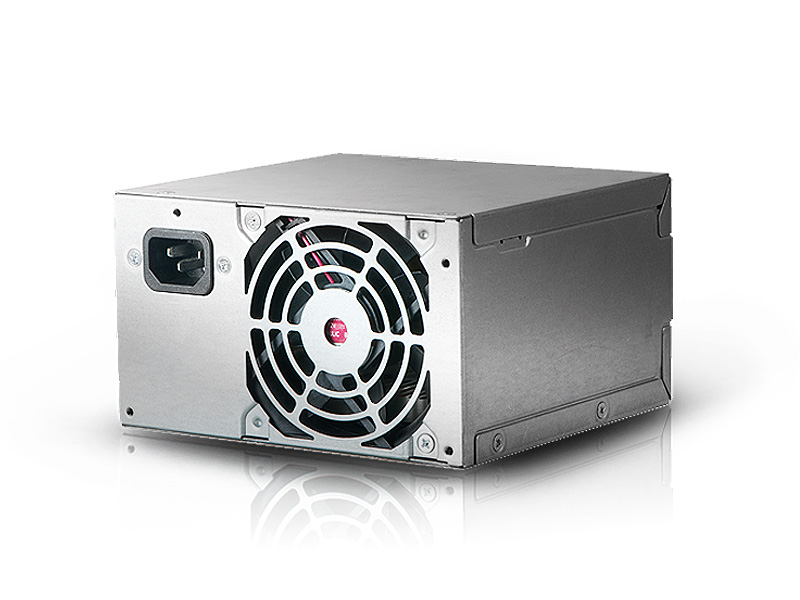

    PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan
    Rear Window
    84H323610-006

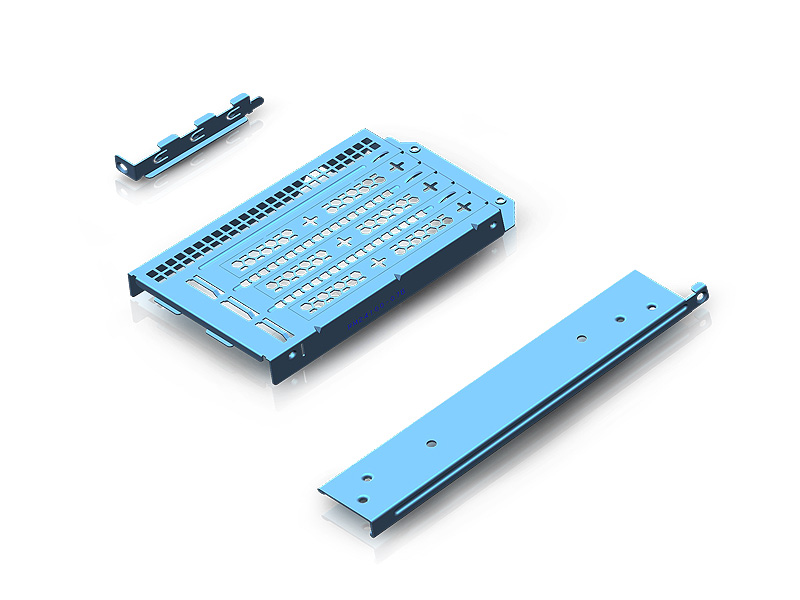

    Rear Window, 3-slot, Full Height
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B PSU Rear Window Slide Rail Front Panel
    RM24100-L 12"x9.6" Option 7-Slot,LP Option Aluminum Frame
    RM24100-L2 12"x9.6" Option 7-Slot,LP Option 2-Door Type
    RM24100-L2U3 12"x9.6" Option 7-Slot,LP Option 2-Door Type
