RM23624

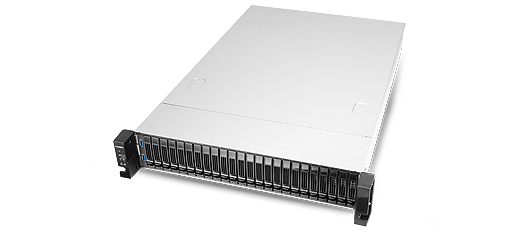

2U 24-bay 2.5" High Disk I/O Performance Server Chassis
Targeting on the mission-critical enterprise with high disk I/O performance application server solution, it supports 12Gb/s SAS expander for 24-bay 2.5" drives or SSD.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

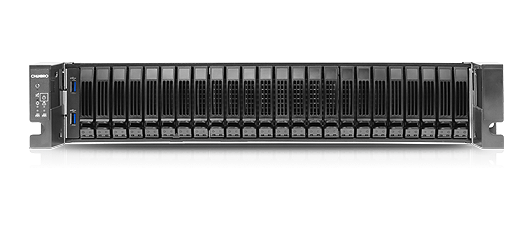

  • Supports 24 2.5" SSD or HDD configuration

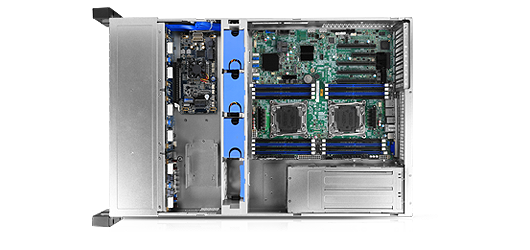

  • Anti-vibration and hot-swap middle fans with smart speed control (on backplane)

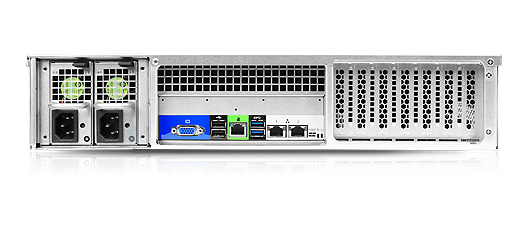

  • Easy-swap 3-slot (Riser) or 7-slot(Low profile) rear window
  • Supports 2U single or 1+1 redundant PSU
  • Supports 12Gb/s 24-port backplane with SAS expander
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB E-ATX (12” x 13”)
    Dimensions (D x W x H) 659.4 x 432 x 88.1 (mm)
    25.96” x 17” x 3.47”
    Drive Bay 2.5" Hot-swap:24
    Internal 2.5" (Option):2
    Power Supply 2U Single or 1+1 Redundant
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x Fan Failure & Overheat
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fan Middle: 3 x 80mm (Up to T=38mm), PWM, Rear: 2 x 40mm (Option)
    Expansion Slot 3 x Full Height and Length or 7 x Low Profile
    Storage Backplane 12Gb/s SAS expander module
    Net Weight 11.0kg
    Gross Weight 12.7kg
    Cubic Feet 4.98
    Container Loading (Single Packing) 20':314, 40':638, 40'H:690
  • Category Description Revision Size Download
    Datasheet RM23624 Datasheet V1.1 1.2 MB
    User Manual RM23616 RM23624 12Gbs 16-port 2.5 mini-SAS HD Passive Backplan V.1.0 388.4 KB
    User Manual RM23616 RM23624 12Gbs 24-port Expander Board V.1.0 521.1 KB
    User Manual RM23624 12Gbs 8-port 2.5 mini-SAS HD Backplane V.1.0 440.0 KB
  • Category Part. No# Description Support
    Bracket
    84H323610-008
    Bracket, PSU, 2U, For R2IS7651A-G/R21S7871A-G
    Bracket
    84H323610-017
    HDD Bracket, 2 x 2.5", Internal, (NCT Part MOQ: 100 pcs)
    Bracket
    84H341710-006
    HDD Bracket, 2 x 2.5", Internal, Tool-less(NCT Part MOQ: 100 pcs)
    Power Supply
    32H2087501101
    PSU, 875w, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Back Panel Slide Rail
    RM23624E3-L 12"x13" 12Gb/s Expander Option 7-Slot,LP Option
    RM23624E3-R700G 12"x13" 12Gb/s Expander 700W (Redundant) 7-Slot,LP Included
