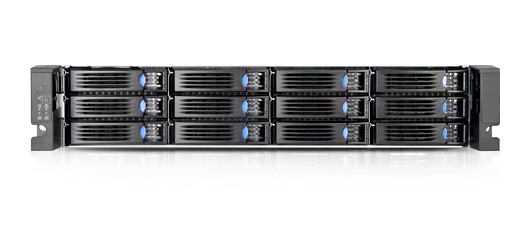

RM23612
2U Mainstream Storage Server Chassis
Featuring 12Gb/s expander backplane, air flow management technology, and anti-vibration design, it is capable of conquering the challenges in the era of storage.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • 6Gb/s or 12Gb/s 12-port mini-SAS backplane with smart fan control

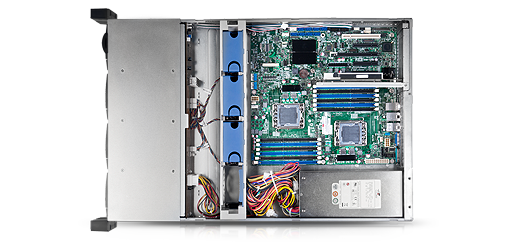

  • Anti-vibration hot-swap middle fans and air flow management

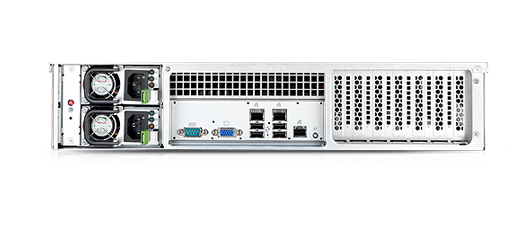

  • Easy-swap 3-sot(Riser) or 7-slot(Low profile) rear window
  • HDD carrier for 2.5" or 3.5" drives
  • Front access info tag for easy server management
  • Supports 2U single and 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660x430x88(mm), 26”x16.9”x3.5”
    Drive Bays 3.5" Hot-swap:12
    PSU Form Factor 2U Single or Redundant
    Indicators 1x Power Status , 2x LAN Activity, 1x Fan Failure & Overheat
    Front Buttons Power On/Off, Alarm Mute, System Reset
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 4x 80mm (T=38mm), PWM , Rear: 2x 40mm (Option)
    Expansion Slots 3x Full Height & Length or 7x Low Profile
    HDD Backplane 12Gb/s mini-SAS HD or 6Gb/s mini-SAS
    Metal Thickness 1.2mm
    Net Weight 11 kg
    Gross Weight 12.7 kg
    Front Bezel Option
    Cubic Feet 4.98
    Container Loading (Single Packing) 20':314, 40':638, 40'H:690
  • Category Description Revision Size Download
    Datasheet RM23612 Datasheet V1.1 520.8 KB
    Firmware Intel S2600CW SDR for SKU RM23612M2-R875CW X00 7.3 KB
    User Manual 6Gb/s 12-port mini-SAS Expander Backplane(80H10323605A1) V1.0 1.2 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 1.3 MB
    User Manual 6Gb/s 12-port 3.5" mini-SAS Backplane (80H10323602A1) V1.0 1.1 MB
    User Manual RM23612 Quick Installation Guide V1.1 478.9 KB
  • Category Part. No# Description Support

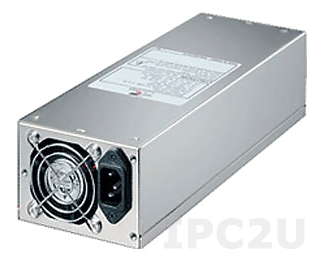

    Bracket
    84H323610-005

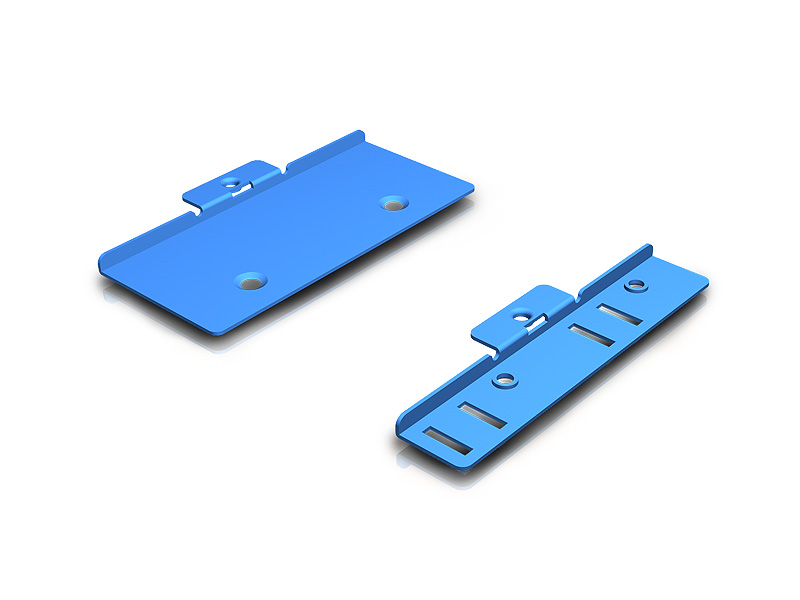

    Bracket, PSU, 2U, For P2G-6510P (Chenbro version) & YM-7501/5601
    Bracket
    84H323610-007
    Bracket, PSU, 2U, For R2W-6500V& C2W Series
    Bracket
    84H323610-008
    Bracket, PSU, 2U, For R2IS7651A/R21S7871A

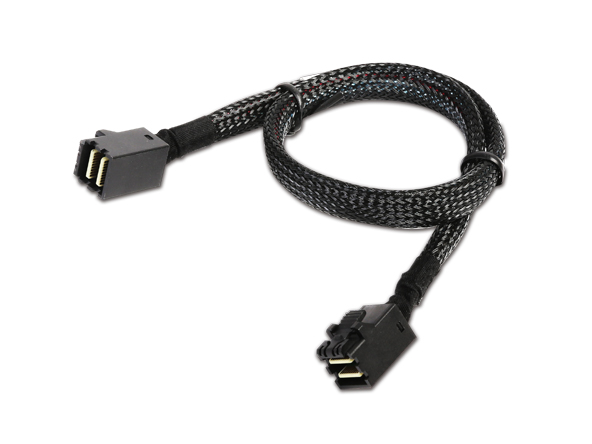

    Cable
    26H12323214B1

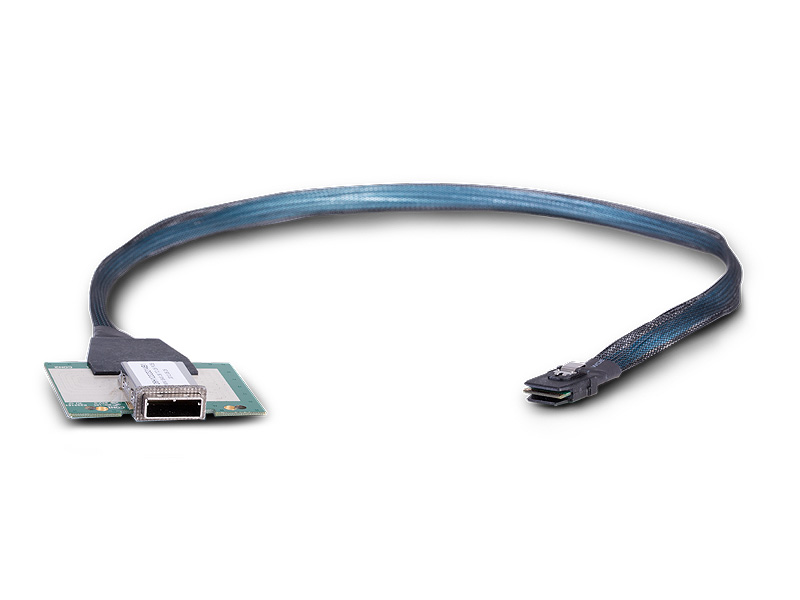

    Cable, mini-SAS, Internal to External, 500mm
    Cable
    26H12323601A0

    Cable, mini-SAS(Host) to 4x SATA, w/Sideband, 600mm

    Power Supply
    32H2065001101

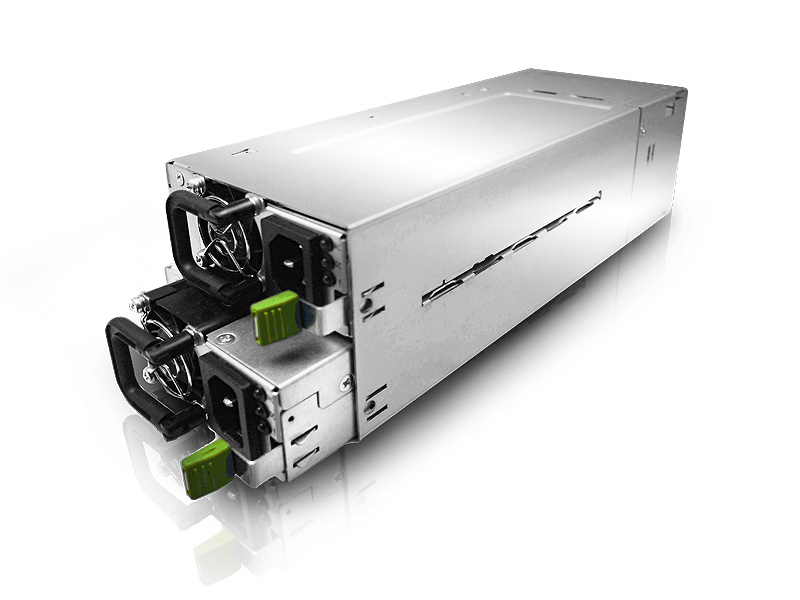

    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2087501101
    PSU, 875W, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Riser Card
    80H09323201B0
    Riser Card, 2U, 2-Slot, PCI-e 16x& PCI-X 64Bit, Cable Link
    Riser Card
    80H09323202B0
    Riser Card, 2U, 1-slot, PCI-e 16x or PCI-X 64 Bit
    Rrear Window
    84H323610-006
    Rear window, 2U, Riser, 3-slot, Full Height
    Slide Rail
    84H341300-002

    Slide Rail, 21.9",For 2U/3U/4U

    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM23612E2-L 12"x13" 6Gb/s Expander Option 7-Slot,LP Option
    RM23612E3-L 12"x13" 12Gb/s Expander Option 7-Slot,LP Option
    RM23612M2-L 12"x13" 6Gb/s mini-SAS Option 7-Slot,LP Option
    RM23612M2-R875CW S2600CW 6Gb/s mini-SAS 875W(Redundant) 7-Slot,LP Option
    RM23612M2-R875L 12"x13" 6Gb/s mini-SAS 875W Redundant 7-Slot,LP Option
    RM23612M3-L 12"x13" 12Gb/s mini-SAS HD Option 7-Slot,LP Option
    RM23612M3-R875L 12"x13" 12Gb/s mini-SAS HD 875W Redundant 7-Slot,LP Option
