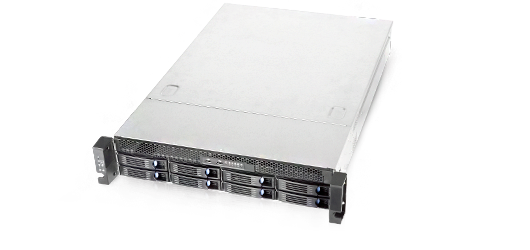

RM23608
2U Entry Computing and Storage Server Chassis

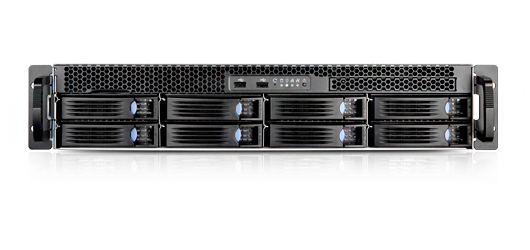

With eight 3.5" HDD hot-swap bays, high operation temperature and flexible fan configuration, it can address the demands in a broad range of applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports 12Gb/s 8-port mini-SAS HD backplane
  • Backplane with smart PWM fan control

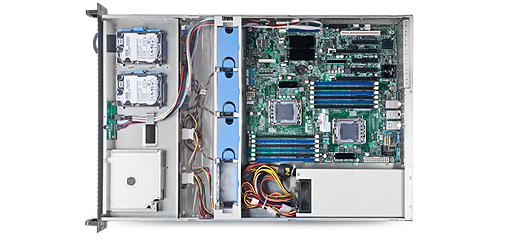

  • Hot-swap middle fans and air flow management

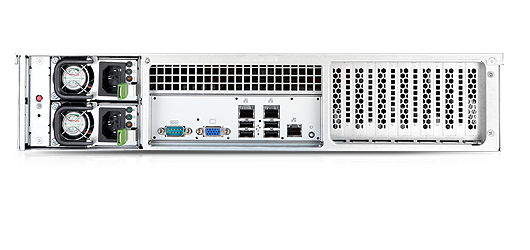

  • Easy-swap rear window for 3-slot or 7-slot configuration
  • Front access information tag
  • Two internal 2.5" drive bays for OS mirroring
  • HDD carrier for 2.5" SSD or 3.5" HDD
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB E-ATX (12” x 13”)
    Dimensions (D x W x H) 660 x 430 x 88 (mm)
    26” x 16.9” x 3.5”
    Drive Bays 3.5" Hot-swap:8
    Slim ODD:1
    Internal 2.5":2
    Power Supply 2U Single or 1+1 Redundant
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure & Overheat
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 4 x 80mm (T=25mm), PWM, MAX, Rear: 2 x 40mm (Option)
    Expansion Slots 3 x Full Height & Length or 7 x Low Profile
    Storage Backplane 12Gb/s
    Net Weight 11.0kg
    Gross Weight 12.7kg
    Front Bezel Option
    Cubic Feet 3.05
    Container Loading (Single Packing) 20':314, 40':638, 40'H:690
  • Category Description Revision Size Download
    Datasheet RM23608 Datasheet V1.2 1.1 MB
    Firmware Intel S2600CW SDR for SKU RM23608M2-R875CW X00 7.3 KB
    Quick Installation Guide (QIG) RM23608_QIG V1.1 14.7 MB
    User Manual RM23608 12Gbs 8-port 3.5 mini-SAS HD Backplane V.1.0 451.5 KB
    User Manual 6Gb/s 8-port 3.5" SATASAS Backplane (80H10323601A1), Rev. A1 V1.0 834.6 KB
    User Manual 6Gb/s 8-port 3.5" mini-SAS Backplane(80H10323604A1), Rev. A1 V1.0 679.0 KB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
  • Category Part. No# Description Support
    Bezel
    84H323610-009
    Bezel, 2U, Plastic (SilFox), BULK,4PCS/10BOX/CTN
    Bracket
    84H323610-005
    Bracket, PSU, 2U, For P2G-6510P (Chenbro version) & YM-7501/5601
    Bracket
    84H323610-008
    Bracket, PSU, 2U, For R2IS7651A-G/R21S7871A-G
    Cable
    126-23612-3005A0
    Mini-SAS HD to Mini-SAS HD, 600mm
    Cable
    26H113215-030
    Mini-SAS 36pin SFF-8087 to SFF-8087, 600mm
    Cable
    26H12323214B1
    mini-SAS, Internal To External, 650mm
    Cable
    26H12323601A0

    mini-SAS(HOST) TO 4*SATA W/SIDEBAND,600mm

    Cable
    83H263215-006
    Cable, For SATA Backplane, w/Lock (560mmx2+700mmx2)
    PCB
    84H331410-025
    6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    Power Supply
    32H151002-002
    510W P2G-6510P (Chenbro Special)
    Power Supply
    32H2065001101
    650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2087501101
    875W,1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Rear Window
    84H323610-006
    Rear Window, 3-slot, Full Height
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Back Panel Slide Rail
    RM23608M2-L 12"x13" 6Gb/s mini-SAS Option 7-Slot,LP Option
    RM23608M2-R650L 12"x13" 6Gb/s mini-SAS 650W Redundant 7-Slot,LP Option
    RM23608M3-L 12"x13" 12Gb/s mini-SAS HD Option 7-Slot,LP Option
    RM23608M3-R650L 12"x13" 12 Gb/s mini-SAS 650W Redundant 7-Slot,LP Option
    RM23608T2-L 12"x13" 6Gb/s SAS& SATA Option 7-Slot,LP Option
    RM23608T2-R650L 12"x13" 6Gb/s SAS& SATA 650W Redundant 7-Slot,LP Option
