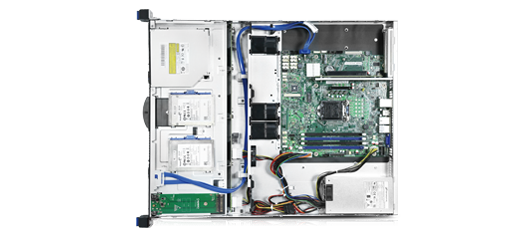

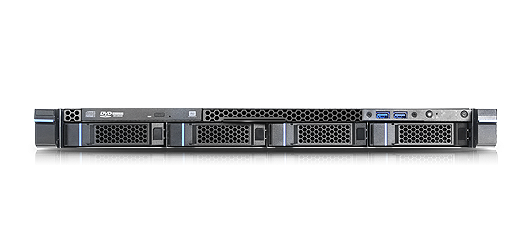

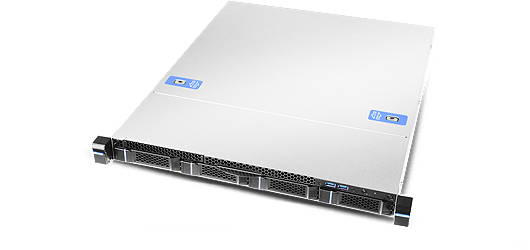

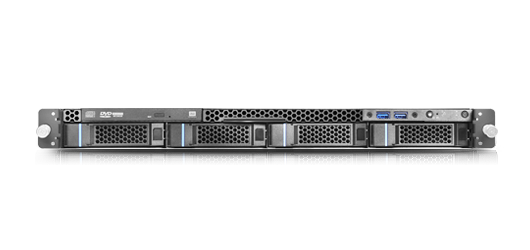

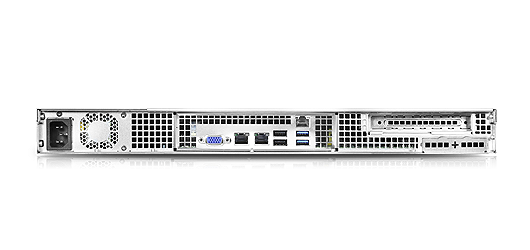

RM14604
1U 4-bay Tool-less Compact Server Chassis
RM14604 features easy maintenance for SMEs, equipped with the brand new design of tool-less 3.5” HDD tray, built in 12Gb/s hot-swap backplane and adopting fans with smart speed control.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • New generation of 3.5" tool-less HDD tray based on Chenbro 3.0 architecture
  • Tool-less installation for top cover, slim ODD, internal 2.5" HDD, and fans
  • Supports 40mm fan up to thickness 56mm
  • Supports 12Gb/s mini-SAS HD and SATA backplanes
  • Front access info tag for easy server management
  • Optional specific kits for Intel S1200SP server board
  • Built-in cable managment kits
  • Supports Flex ATX PSU
  • Optional rack handle to place your logo and color
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor ATX(12" x 9.6")
    Dimensions (Dx Wx H) 550 x 438.5 x 43.2(mm)
    21.6" x 17.2" x 1.7"
    Drive Bays 3.5" Hot-swap:4
    Internal 2.5":2
    Slim ODD:1
    PSU Form Factor Flex ATX
    Indicators 1 x Power Status, 2 x LAN Activity, 1 x HDD Activity, 1 x Status, 1 x UID
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0 or USB 2.0
    System Security N/A
    Cooling Fans Middle : 3 x 40 mm (up to 4), (Up to T=56 mm) PWM
    Expansion Slots 1 x Full Height (Option)
    HDD Backplane 12Gb/s mini-SAS HD or 12Gb/s SAS/SATA
    Net Weight 7.5Kg
    Gross Weight 10.0 Kg
    Front Bezel Option
    Cubic Feet 1.84
    Container Loading (Single Packing) 20': 360, 40':744
  • Category Description Revision Size Download
    Configuration Guide RM14604 Configuration Guide V1.0 509.7 KB
    Datasheet RM14604 Datasheet V1.1 1.1 MB
    Firmware Intel S1200SPS SDR for SKU RM14604 X00 2.2 MB
    Product Brief RM14604 Product Brief V1.0 272.5 KB
    Quick Installation Guide(QIG) RM14604 QIG V1.2 5.2 MB
    Technical Product Specification (TPS) RM14604 TPS V1.2 4.0 MB
  • Category Part. No# Description Support

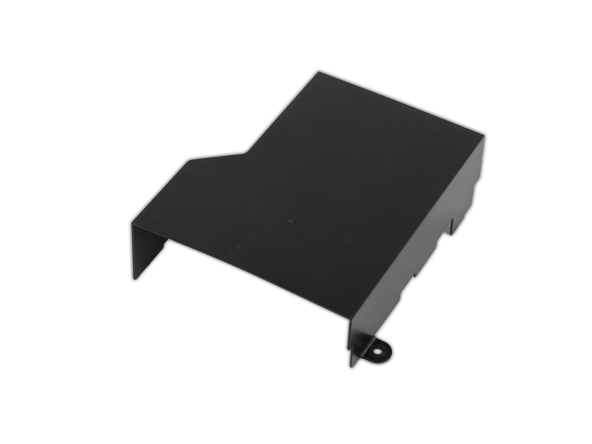

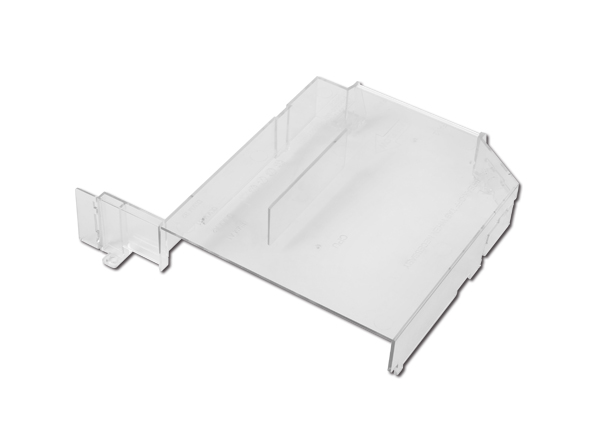

    Air Duct
    50H353149A003
    PC Transparent, For Intel S1200SPO/ S1200SPL/S1200SPS
    Air Duct
    84H314610-021
    Air Duct, RM14604-310A,PC MYLAR,BK, For Intel 1200SP
    Air Duct
    84H314910-093
    Air Duct, RM14912-201A,PC TRANS. 94V-2, For Intel 1200SP
    Air Duct
    84H314910-094
    Air Duct, RM14912-201A,PC,Black CC1012, For Intel S1200SP
    Bezel
    384-14605-3100A0
    Front Bezel, 1U, Metal, Black
    Cable
    384-14620-3304A0
    Cable, SATAIII, 600mm, w/Lock

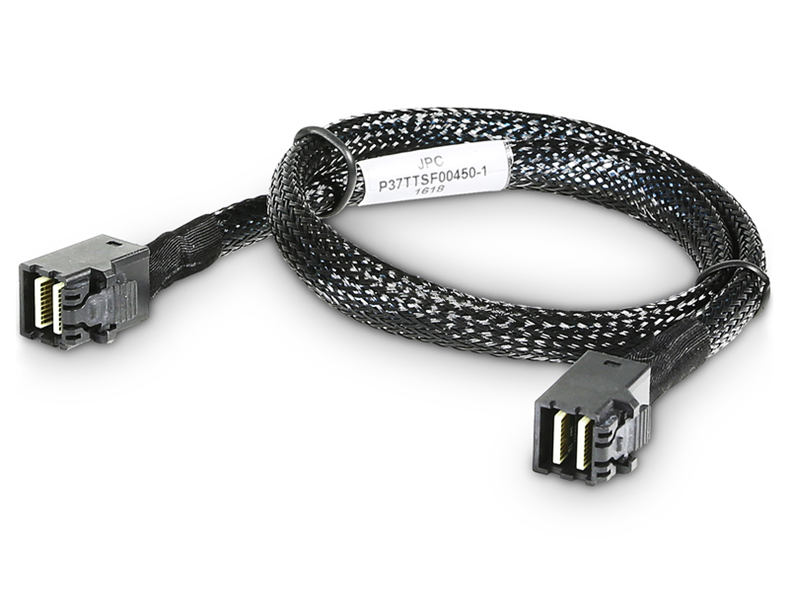

    Cable
    384-14620-3305A0
    mini-SAS HD to mini-SAS HD, 550mm
    Cable
    384-14620-3307A0
    Cable, SATAIII, 650mm, w/Lock
    Cable
    384-14620-3308A0
    USB3.0, 2 x Type A Port(26H03342203A0), 750mm
    Cable
    384-14620-3309A0
    Cable, SATA III, 350mm, w/Lock
    Cable
    384-14620-3310A0
    Cable, SATA III, 450mm, w/Lock
    Cable
    384-14620-3311A0
    Cable, SATAIII, 550mm, w/Lock
    Cable

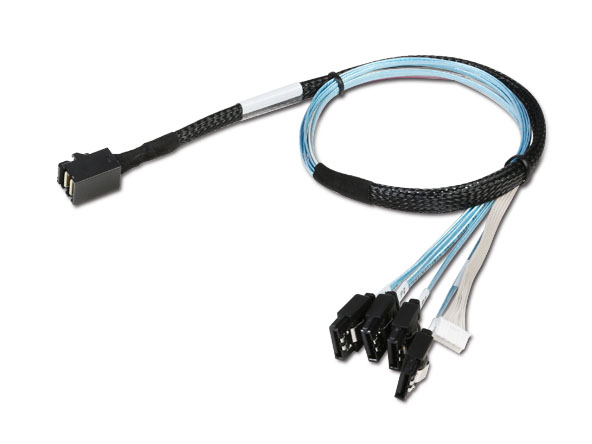

    384-14620-3313A0
    mini-SAS HD to 4*SATA (HOST), w/Sideband, For Intel MB, 550mm

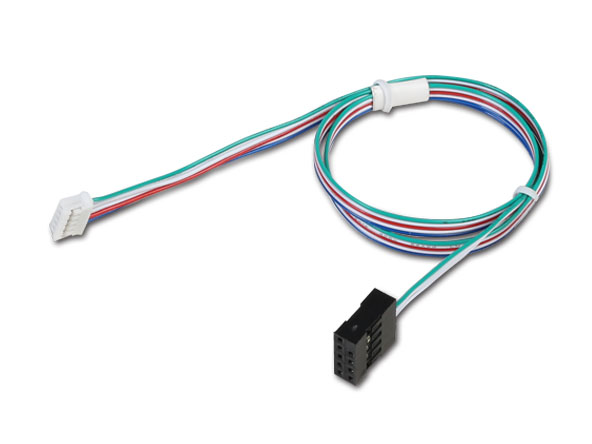

    Cable
    384-14620-3314A0
    SGPIO, 5*2 to 5*1, 480mm, For Intel MB S1200SP
    Cable
    384-14620-3315A0
    Cable, I2C, 5*1 to 3*1, Backplane to MB, 270mm, For Intel MB S1200SP
    I/O Shield
    84H314610-009
    I/O GASKET, Intel S1200SP
    Power Supply
    84H314610-020
    PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket
    Rack Handle
    384-14609-3100A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024
    Cabinet Mounting EAR, plastic part with latch, Black/Blue, Left
    Rack Handle
    84H314610-025
    Cabinet Mounting EAR, plastic part with latch, Black/Blue, Right

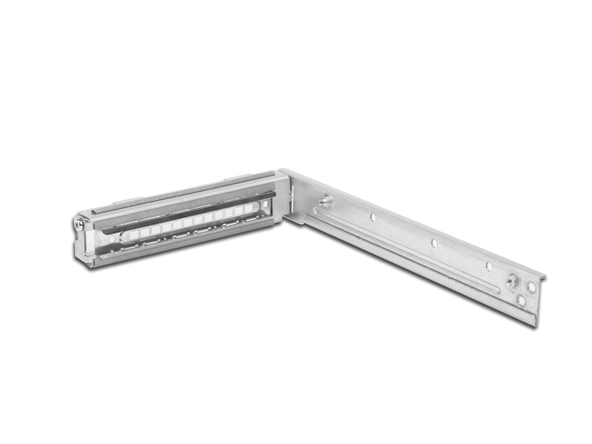

    Riser Bracket
    56H093146-003
    Riser bracket, 1 Slot, Full Height with Card Holder

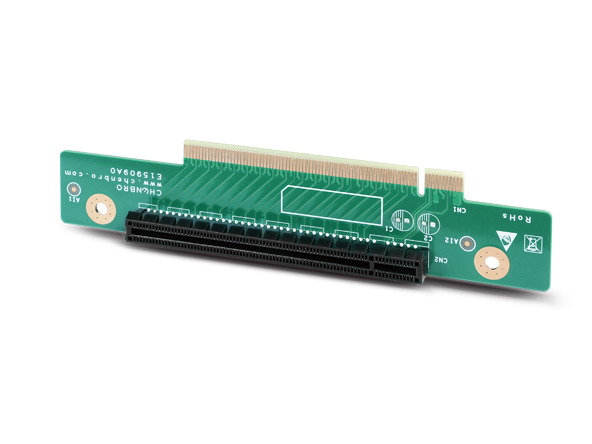

    Riser Card
    84H314610-023
    Riser card with bracket, PCI-e 16x, Gen 3, Rev.A0
    Slide Rail
    384-14303-3100A0
    23.2“, P2P:23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    384-14303-3101A0
    17.2“, P2P:22.8" to 27.7", Traveling Distance 11.3", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    84H314610-003
    23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan Rack Handle PSU USB 3.0 Slide Rail
    RM14604M3 12" x 9.6" 12Gb/s mini-SAS HD 3 x 4028 Screw-type Option Yes Option
    RM14604T3 12" x 9.6" 12Gb/s SAS/SATA 3 x 4028 Screw-type Option Yes Option
