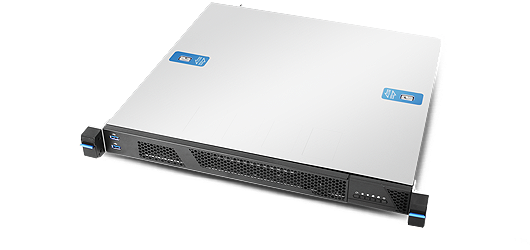

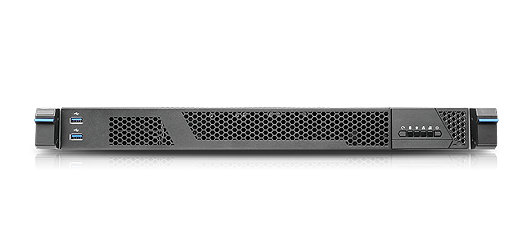

RM14300

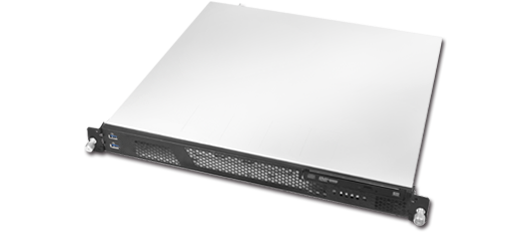

1U Front and Rear I/O Compact Server Chassis

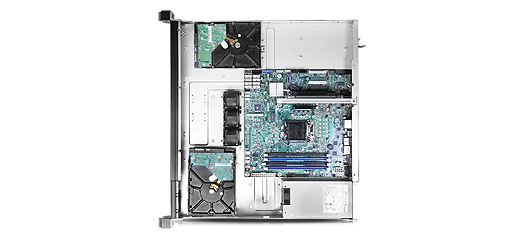

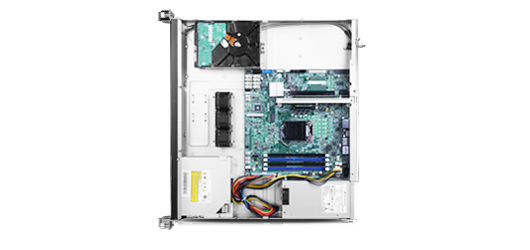

Supporting front I/O and rear I/O, and accommodating either three 3.5” and three 2.5” SATA HDDs or six 2.5" HDDs, RM14300 provides highly flexible configuration for various applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

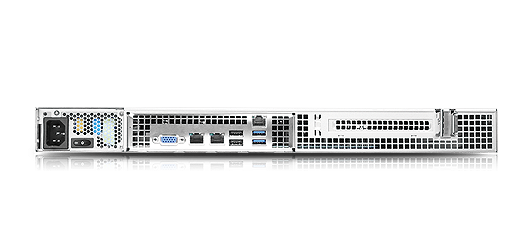

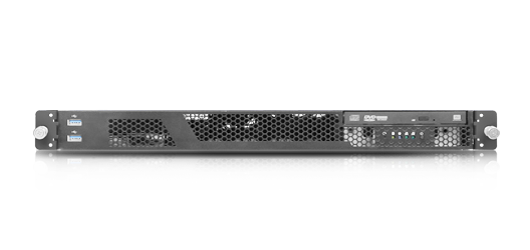

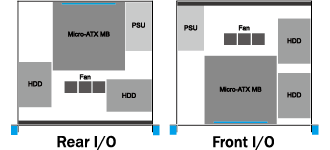

  • Supports front and rear motherboard I/O access
  • Tool-less(RM14300-EZ) or non Tool-less(RM14300) HDD carrier for concurrent 3.5" and 2.5" HDD installation
  • Flexible HDD configurations via optional HDD carriers
  • Anti-vibration 40mm PWM fan (up to thickness 48mm)
  • Supports Flex ATX PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 406.7 x 438.5 x 43.2(mm)
    16" x 17.2" x 1.7"
    Drive Bays Internal 3.5":2
    Internal 2.5":2
    Slim ODD:option
    PSU Form Factor Flex ATX
    Indicators 1x Power Status, 2x LAN Activity, 1x HDD Status
    Front Control 1x Power On/Off, 1x System Reset, 2 x USB 2.0 or 2 x USB 3.0
    System Security N/A
    Cooling Fans 3x 40mm(T=28mm, up to 48mm), PWM
    Expansion Slots 1x Full Height
    HDD Backplane N/A
    Net Weight 4.15Kg
    Gross Weight 6.22Kg
    Cubic Feet 1.24
    Container Loading (Single Packing) 20': 320, 40': 640, 40'H:720
  • Category Description Revision Size Download
    Configuration Guide RM14300 Configuration Guide V1.0 441.1 KB
    Datasheet RM14300 Datasheet V1.2 973.5 KB
    Quick Installation Guide(QIG) RM14300_Quick Installation Guide V1.1 7.9 MB
    Technical Product Specification (TPS) RM14300 TPS V1.0 3.0 MB
  • Category Part. No# Description Support

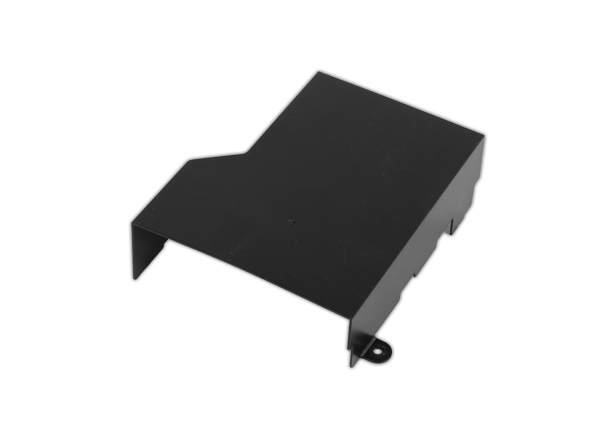

    Air Duct
    84H314910-080
    Air Duct, For Intel S1200SPS , S1200SPO , S1200SPL
    Cable
    384-14620-3304A0
    Cable, SATAIII, 600mm, w/Lock
    Cable
    384-14620-3307A0
    Cable, SATAIII, 650mm, w/Lock
    Cable
    384-14620-3308A0

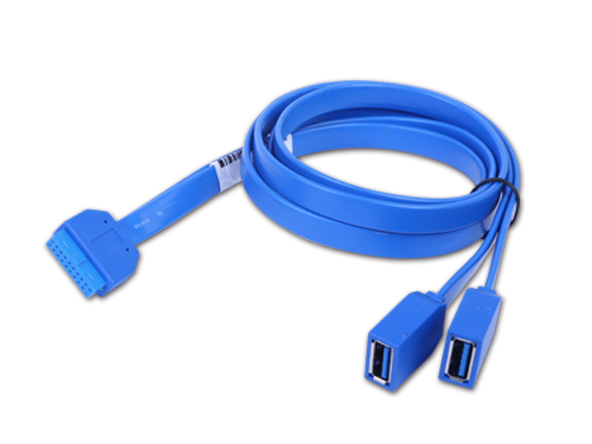

    USB3.0, 2 x Type A Port(26H03342203A0), 750mm
    Cable
    384-14620-3309A0
    Cable, SATA III, 350mm, w/Lock
    Cable
    384-14620-3310A0
    Cable, SATA III, 450mm, w/Lock
    Cable
    384-14620-3311A0
    Cable, SATAIII, 550mm, w/Lock
    HDD Carrier
    84H314310-007
    Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD

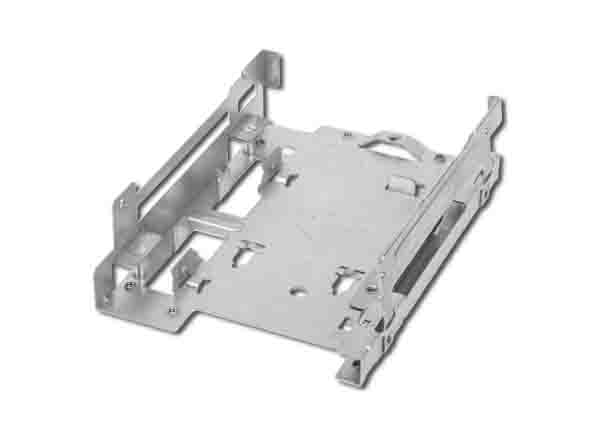

    HDD Carrier
    84H314310-008

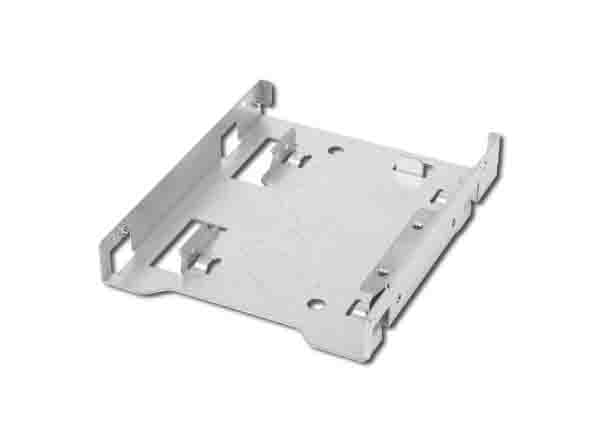

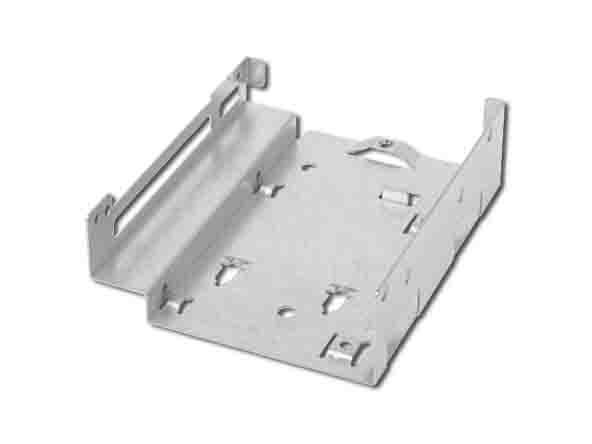

    HDD Bracket, 1 x 2.5" bay, Non Tool-less Installation (3.5" to  2.5")
    HDD Carrier
    84H314910-092
    Non Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    Heat Sink
    384-14619-3300A0
    Heat Sink

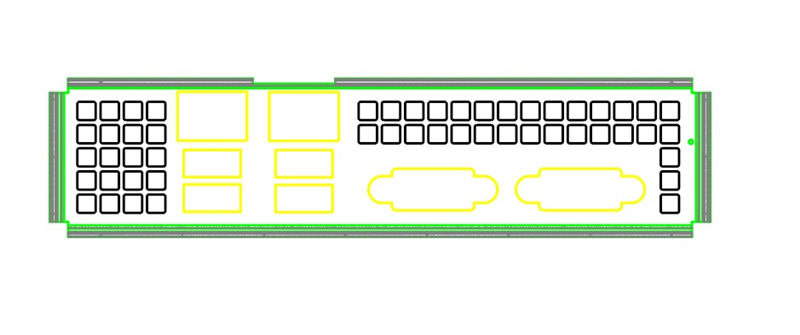

    I/O Shield
    84H313610-022
    I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH
    I/O Shield
    84H313610-056
    I/O GASKET, Gigabyte MX31-BS0
    I/O Shield
    84H314610-009
    I/O GASKET, Intel S1200SP
    Power Supply
    84H314310-013

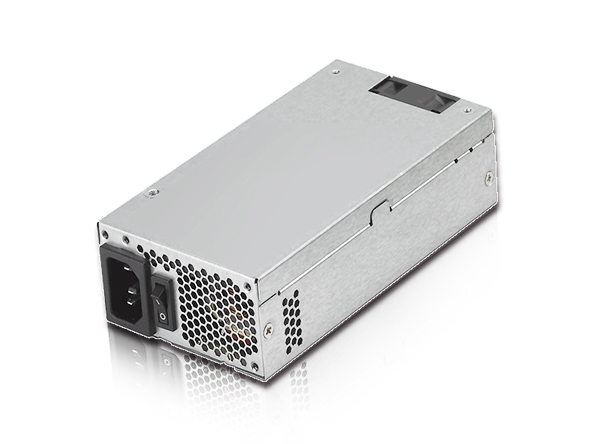

    PSU, 200W, Full Range, w/PFC, FSP200-50LG(32H1022000702)

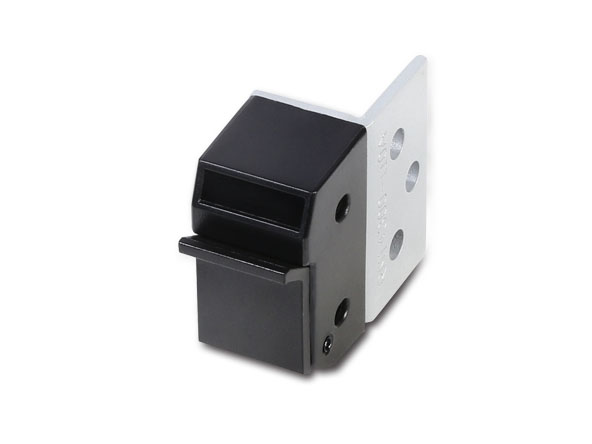

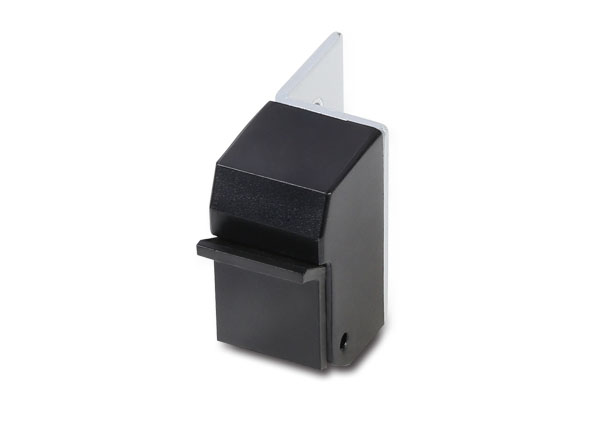

    Rack Handle
    384-14309-3011A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14309-3012A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314310-009
    Cabinet Mounting EAR, plastic part with latch, Black/Blue, Left
    Rack Handle
    84H314310-010
    Cabinet Mounting EAR, plastic part with latch, Black/Blue, Right
    Riser Card
    84H314310-005
    1-slot, PCI-e x8, Short Version

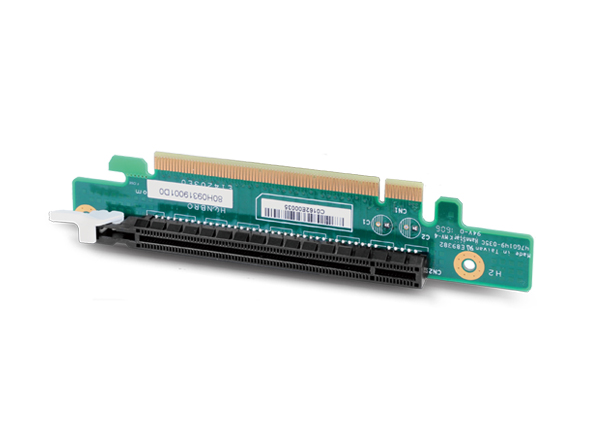

    Riser Card
    84H314310-006
    1-Slot, PCI-e 16x (80H09319001C0),  w/ bracket
    Slide Rail
    384-14303-3100A0
    23.2“, P2P:23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    384-14303-3101A0
    17.2“, P2P:22.8" to 27.7", Traveling Distance 11.3", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    84H314610-003
    23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code M/B Slim ODD Bay Middle Fan PSU USB 3.0 Slide Rail
    RM14300 9.6" x 9.6" Yes 3 x 4028 Option Yes Option
    RM14300-200 9.6" x 9.6" Yes 3 x 4028 Option Yes Option
    RM14300-200D 9.6" x 9.6" N/A 3 x 4028 Option Yes Option
    RM14300-D 9.6" x 9.6" Yes 3 x 4028 Option Yes Option
