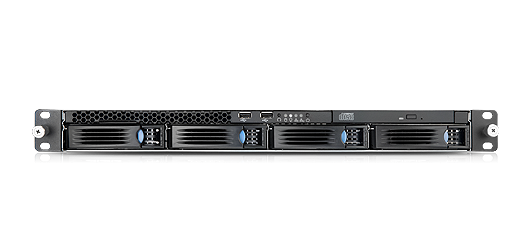

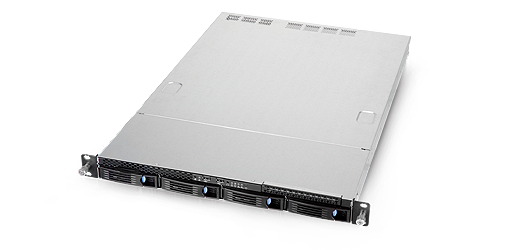

RM13604

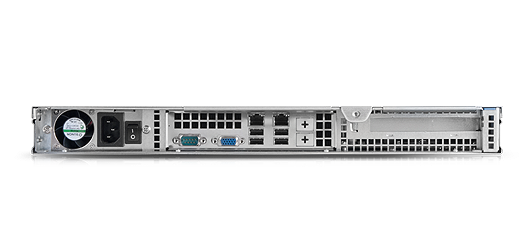

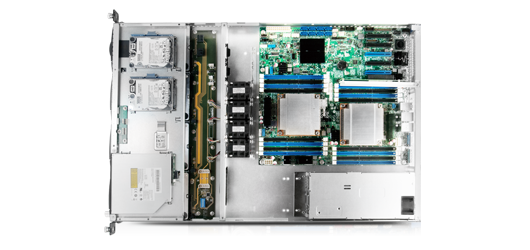

1U High Thermal Performance Server Chassis
Featuring flexible fan configuration, smart fan control and high working temperature make it ideal for data center application.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Tool-less installation on internal 2.5" HDD bays, add-on card and fans
  • Quick release cabinet mounting screws
  • HDD Carrier for 2.5" or 3.5" drives
  • Two internal 2.5" drive bays for OS mirroring
  • Front access info tag for easy server management
  • Horizontal 12Gb/s or 6Gb/s SAS & SATA backplane with smart fan control
  • Air flow management baffle to prevent circulation
  • Anti-vibration middle Fans
  • Supports 1U single and redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660 x 430 x 43.5 (mm), 26” x 16.9” x 1.7”
    Drive Bays Slim ODD:1
    3.5" Hot-swap:4
    Internal 2.5":2
    PSU Form Factor 1U Single or Redundant
    Indicators 1 x Power Status,
    1 x HDD Activity,
    2 x LAN Activity ,
    1 x Fan Failure and Overheat (RPSU SKU)
    Front Buttons Power On/Off, Alarm Mute, System Reset, 2 x USB2.0
    System Security NA
    Cooling Fans Middle: 40x28, 40x48 or 40x56 (up to 6)
    Expansion Slots 1x Full Height & Length
    HDD Backplane 12Gb/s or 6Gb/s SATA/SAS
    Metal Thickness 1.0mm
    Net Weight 6.8kg
    Gross Weight 9kg
    Front Bezel NA
    Cubic Feet 2.04
    Container Loading (Single Packing) 20': 450, 40':930, 40'H:1050
  • Category Description Revision Size Download
    Datasheet RM13604 Datahseet V1.2 1.2 MB
    Firmware Intel S2600CW SDR for SKU RM13604T2-CW X00 7.3 KB
    User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane (80H10313601A0), Rev. A0 V1.0 416.0 KB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM13604 Quick Installation Guide V1.1 516.9 KB
  • Category Part. No# Description Support

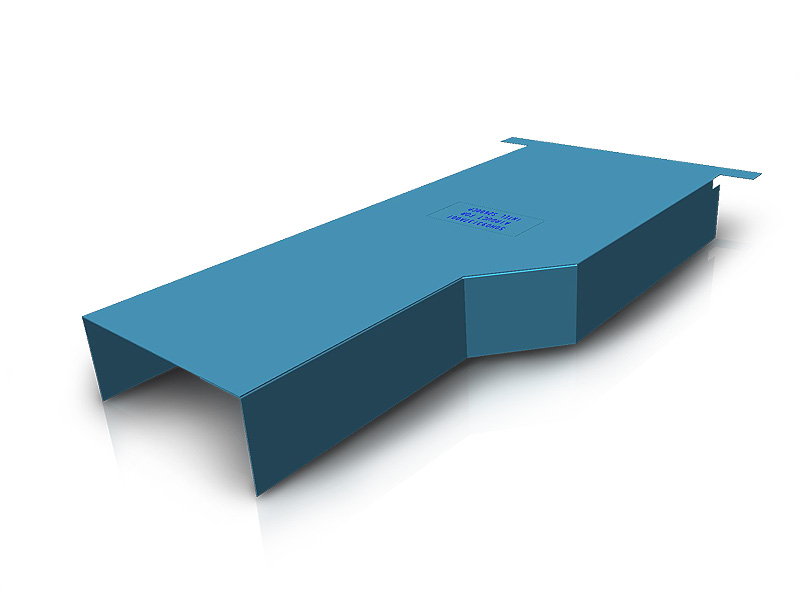

    Air Duct
    50H093137A001
    Air Duct, PVC, For Intel S2600CP

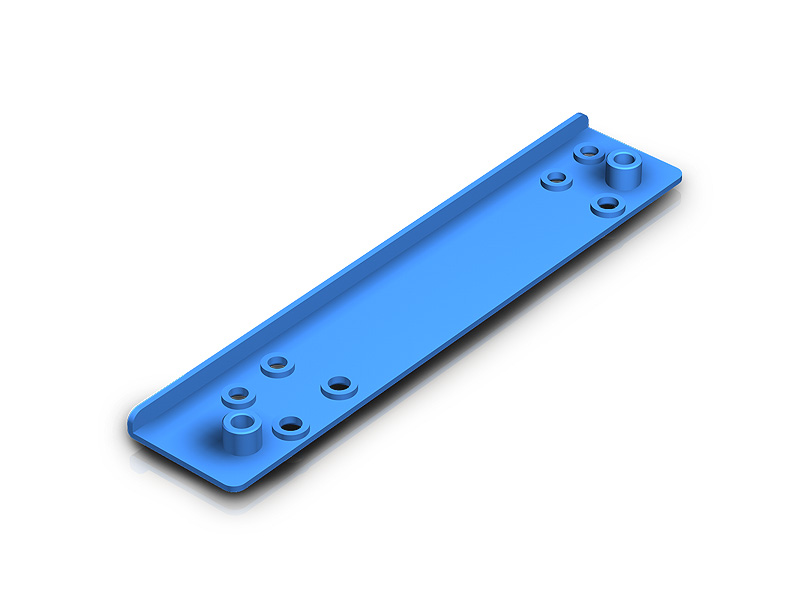

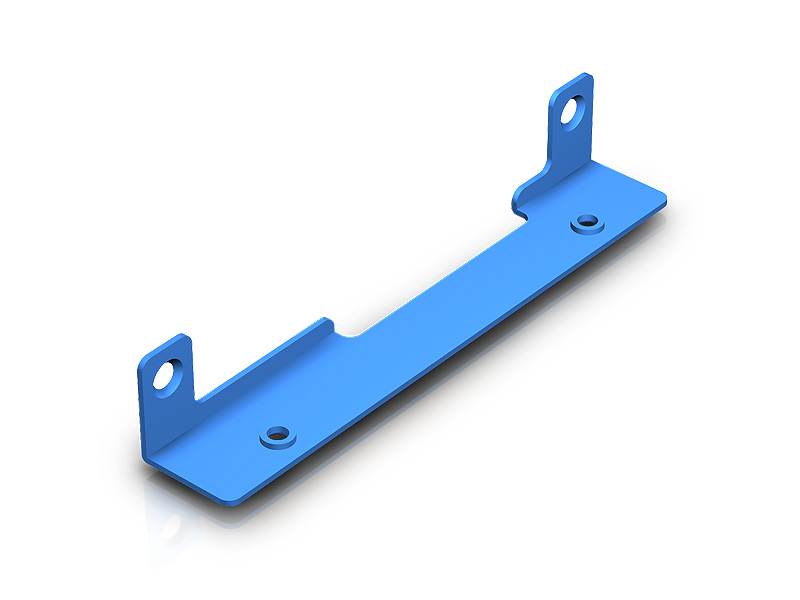

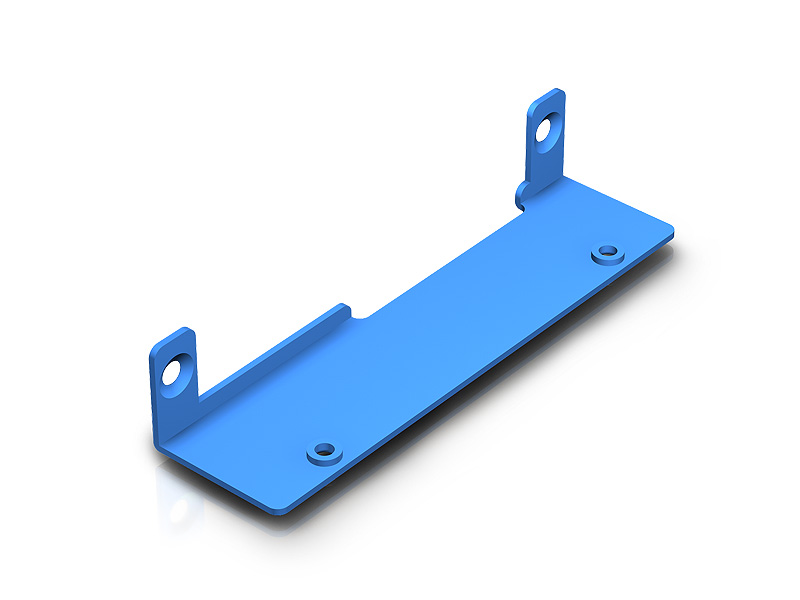

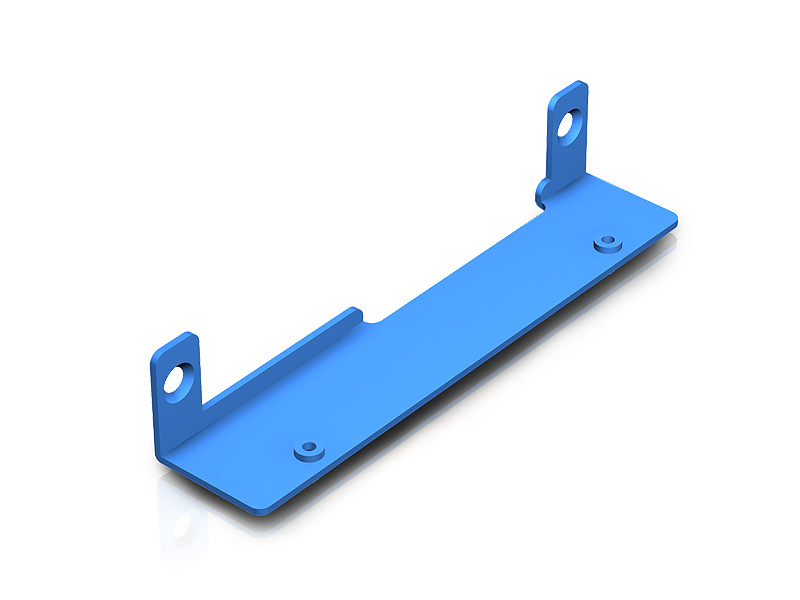

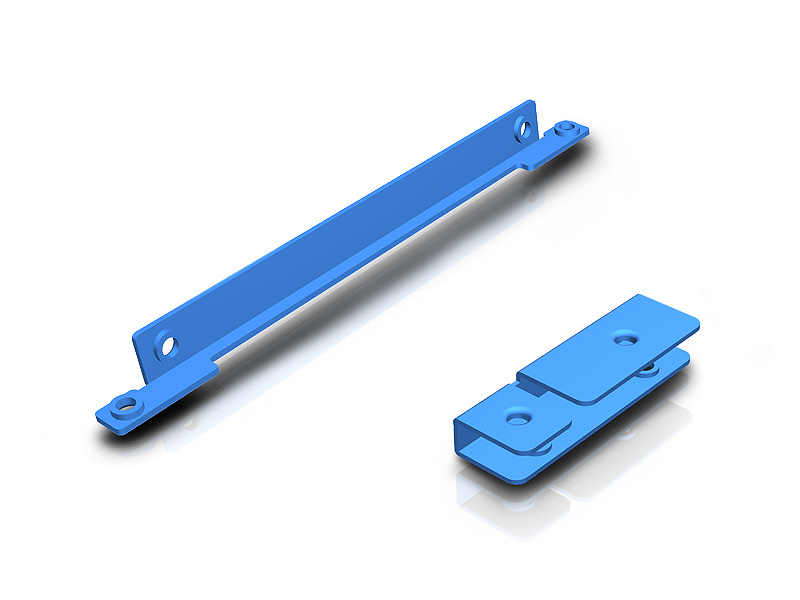

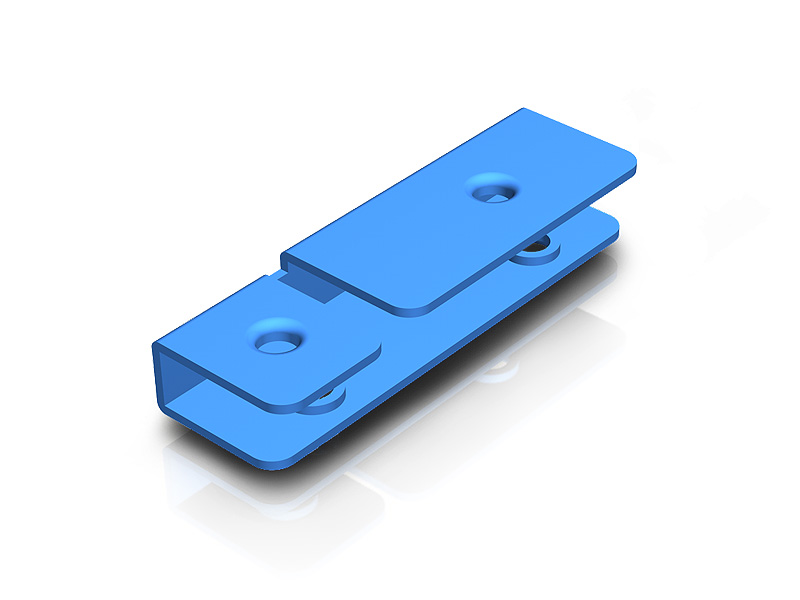

    Bracket
    84H312410-070
    Bracket, PSU, 1U, For P1H-5400VP/P1H-5500V
    Bracket
    84H313610-005
    Bracket, PSU, 1U, For YH-8651BA11R
    Bracket
    84H313610-007
    Bracket, PSU, 1U, For AcBel FS9029-7H1G
    Bracket
    84H313610-012
    Bracket, PSU, 1U, For M1U2-5650V4H
    Bracket
    84H313710-002
    Bracket, PSU, 1U, For FSP500-701UP
    Bracket
    84H313710-007
    Bracket, PSU, 1U, For FSP460-701UH

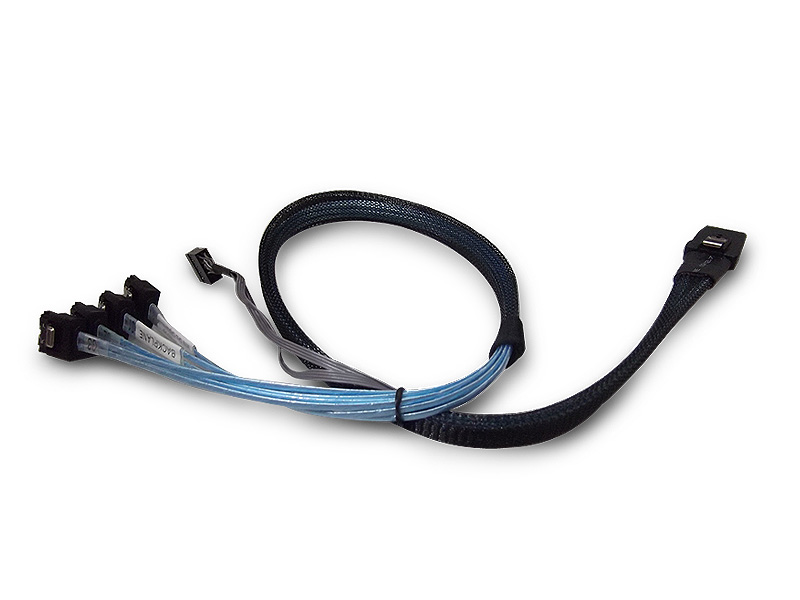

    Cable
    26H12323601A0

    Cable, mini-SAS(Host) to 4x SATA, w/Sideband, 600mm

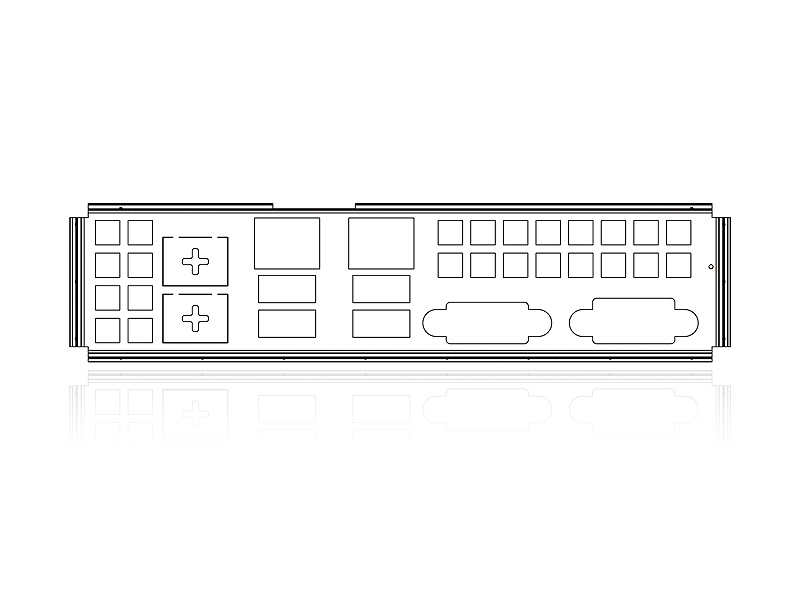

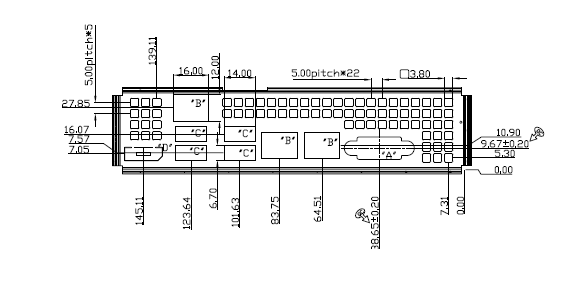

    I/O Shield
    84H313110-009
    I/O shield, 1U, For Intel S5520HC/S5500BC/S3420GP
    I/O Shield
    84H313710-009
    I/O shield, 1U, For Intel S2600CP/S2600CO

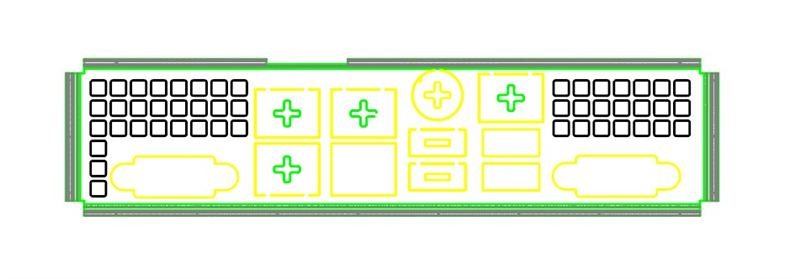

    I/O Shield
    84H313710-022
    I/O Shield, 1U, For ASUS Z9PE-D16

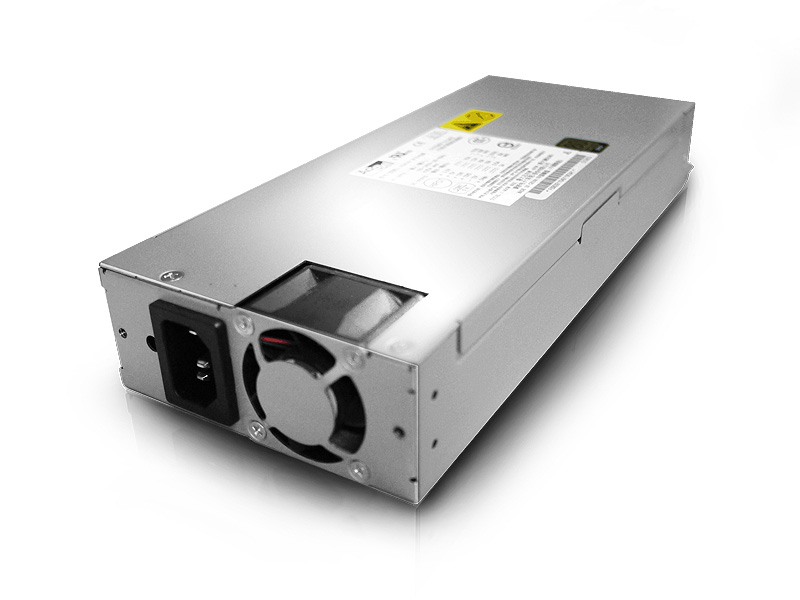

    Power Supply
    32H1050001101
    PSU, 500W, 1U Single, Acbel FS9029-7H1G, 80+ Gold

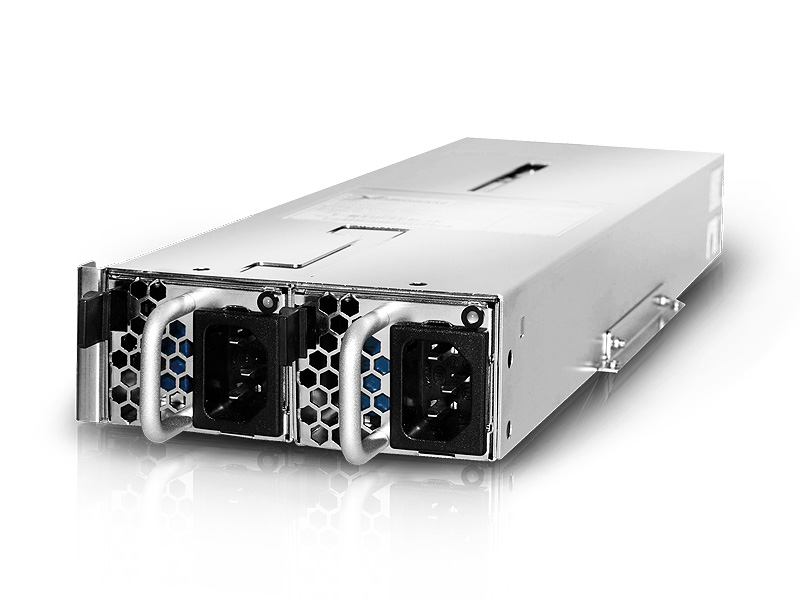

    Power Supply
    32H2065002202
    PSU, 650W, 1+1 Redundant, YH-8651BA11R, PMBus 1.1

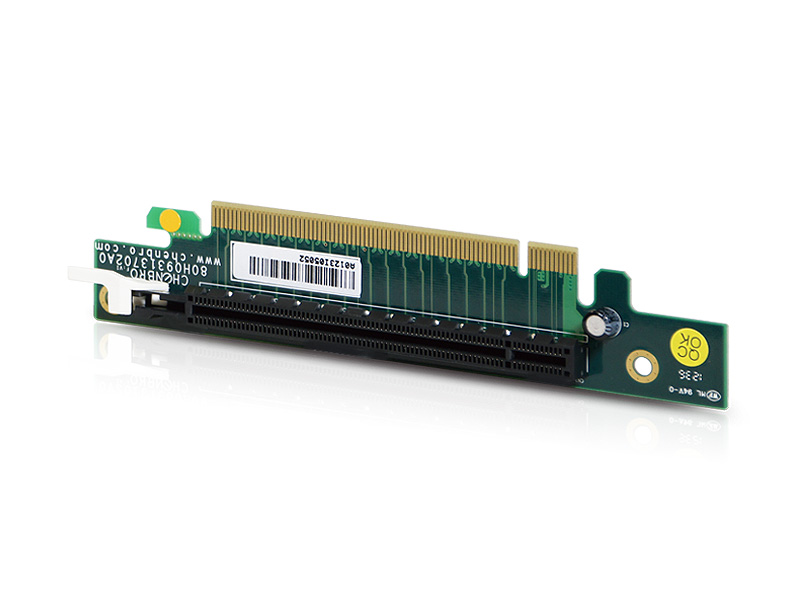

    Riser Card
    80H09313702A0
    1U, 1-Slot, PCI-e 16x
    Riser Card
    80H09313703A0
    Riser Card, 1-Slot, PCI-E 8x
    Riser Card
    80H09313703A1
    1U, 1-Slot, PCI-e 8x

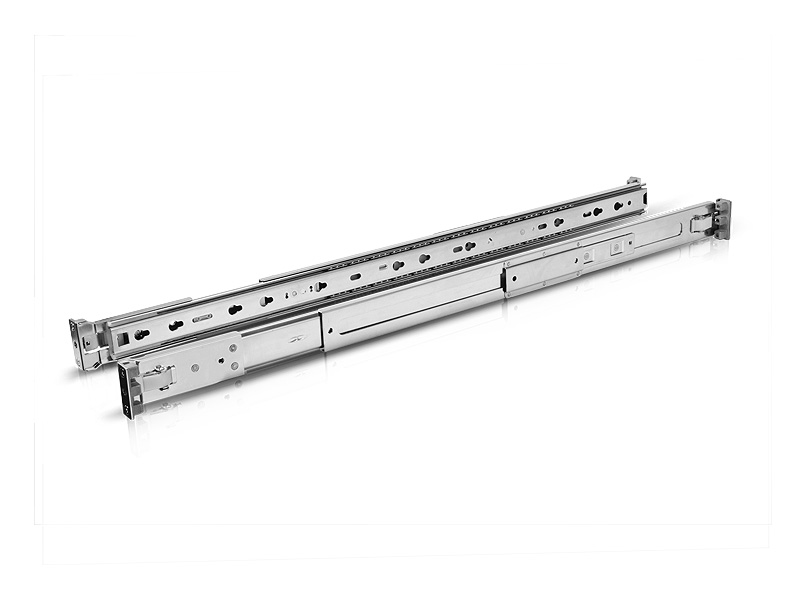

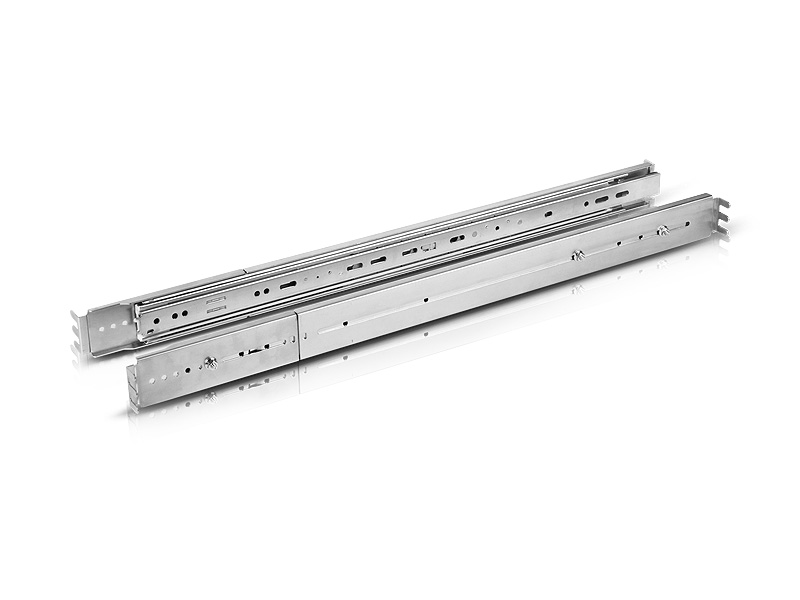

    Slide Rail
    84H311610-082
    Slide Rail, 26", Tool-less
    Slide Rail
    84H311710-095
    Slide Rail, 26"
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan PSU Slide Rail
    RM13604T2 12"x13" 6Gb/s SAS& SATA 4x 40x28mm Option(Single) Option
    RM13604T2-CW S2600CW 6Gb/s SAS& SATA 5x 40x56mm Option(Single) Option
    RM13604T2-R 12"x13" 6Gb/s SAS& SATA 4x 40x28mm Option(Redundant) Option
    RM13604T3 12"x13" 12Gb/s SAS& SATA 4x 40x28mm Option(Single) Option
    RM13604T3-R 12"x13" 12Gb/s SAS& SATA 4x 40x28mm Option(Redundant) Option
