RM42300

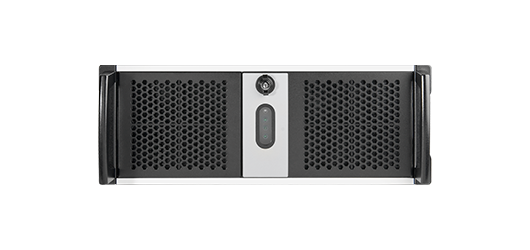

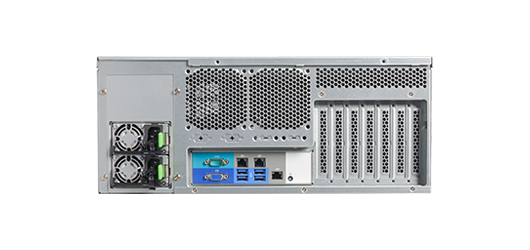

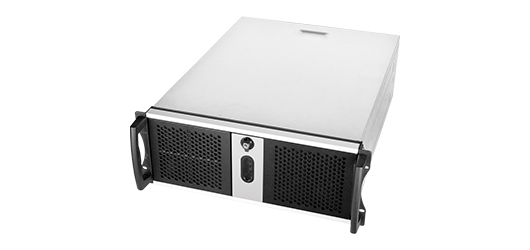

4U 17.5" Compact Industrial Server Chassis
With entire isolated anti-vibration cage, dust-proof filter, and compact size make it perfect for space-sensitive industrial applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 9.6”
  • Available for rackmount and stand-alone installation
  • Dedicated 80 mm fan for HDD cooling

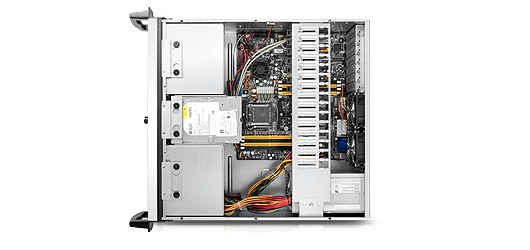

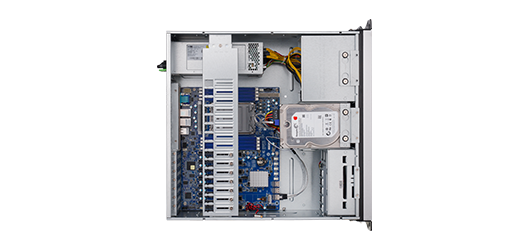

  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Card retainer to hold low profile and full height add-on cards
  • Front 120mm fan with filter for add-on card cooling
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility

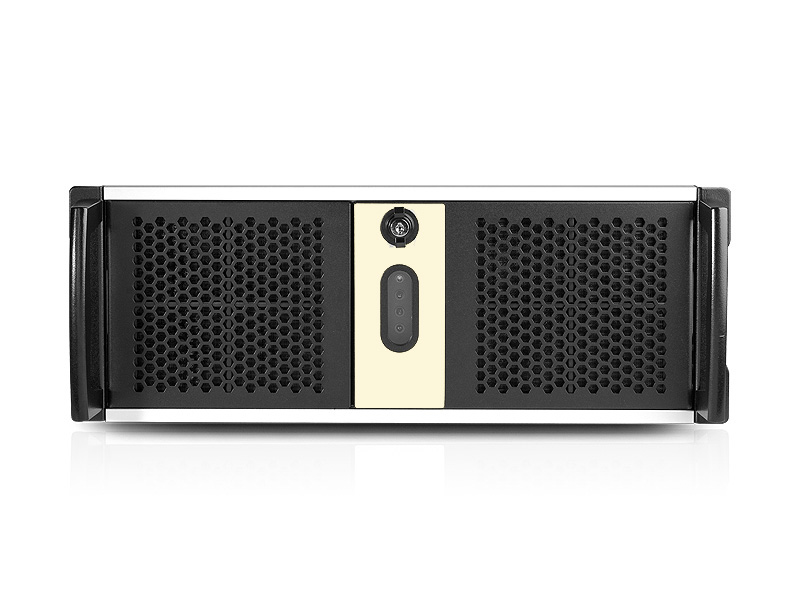

  • Supports 1-door or 2-door front bezel configuration
  • Supports 1200W (1+1) 2U CRPS module (w/ housing and PDB)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 4U
    MB Form Factor ATX (12” x 9.6”)
    Dimensions (D x W x H) 465.2 x 430.0 x 176.0 (mm)
    18.32” x 16.93” x 6.93”
    Drive Bays External 3.5":1
    External 5.25":3
    Internal 3.5":4
    Slim ODD:1
    PSU Form Factor Option: 1200W (1+1) 2U CRPS module (w/ housing and PDB)
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    System Security Intrusion Switch (Option)
    Key Lock on Front Door
    Cooling Fans Front: 1 x 120 mm (T=25 mm), PWM,
    Rear: 2 x 80 mm (T=25 mm) (Option)
    Expansion Slots 7 x Full Height
    HDD Backplane N/A
    Net Weight 9.5 kg/20.93 lb
    Gross Weight 12.3 kg/27.09 lb
    Front Bezel Option
    Cubic Feet 3.44
    Container Loading (Single Packing) 20': 192 ,
    40': 432 ,
    40'H: 504 (Single + Pallet)
  • Category Description Revision Size Download
    Datasheet RM42300 Datasheet V1.3 7.4 MB
    User Manual RM42300 Quick Installation Guide V1.1 443.4 KB
  • Product category Part. No# Description Support
    Bezel
    84H341310-005
    Bezel, Metal, 2-Door, Black, RM413/423
    Bracket
    384-MIX00438B0A0

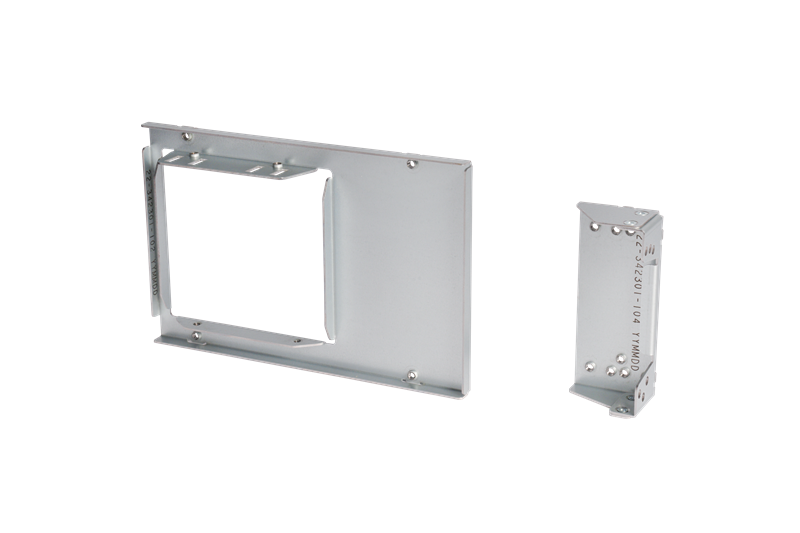

    PSU bracket only
    Power bracket to support CRPS for FSP or Acbel

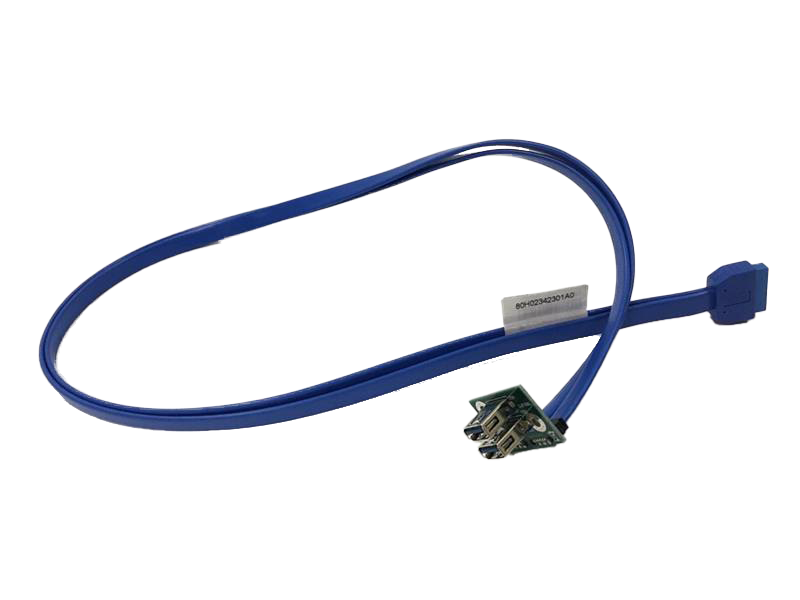

    Cable
    84H342310-012
    Cable, w/PCB 80H02342301A0, USB3.0
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA

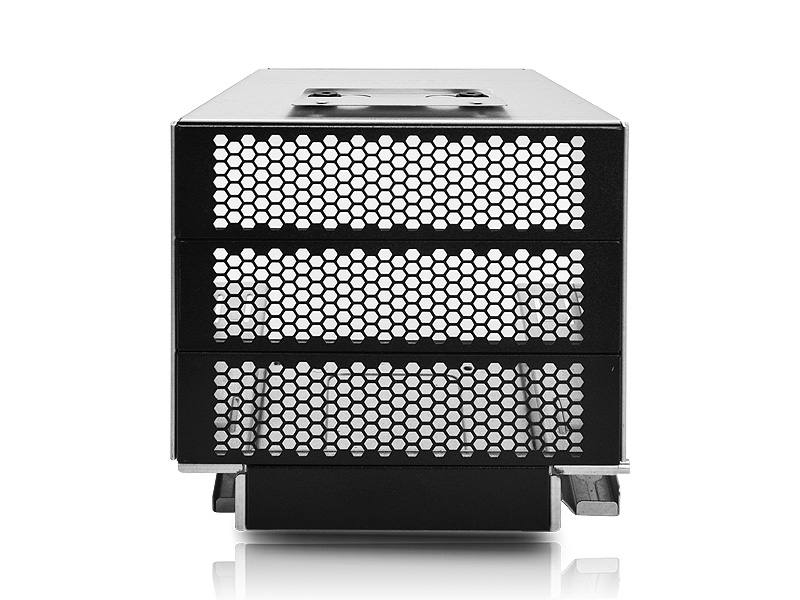

    Drive Cage
    84H342310-003

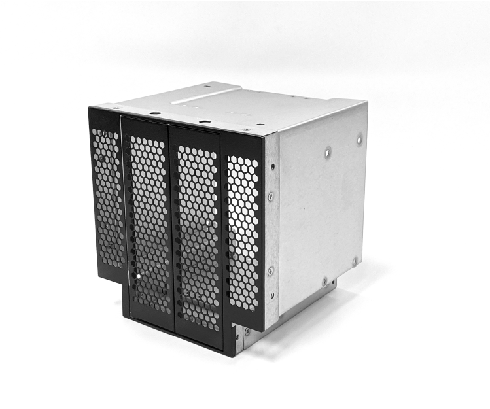

    Drive cage, 3x5.25", For Rackmount, RM41300/RM42300
    Drive Cage
    84H342910-012
    Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058
    Fan, 80MM, 3P3C, T25, Ball Bearing, L650MM, AVC

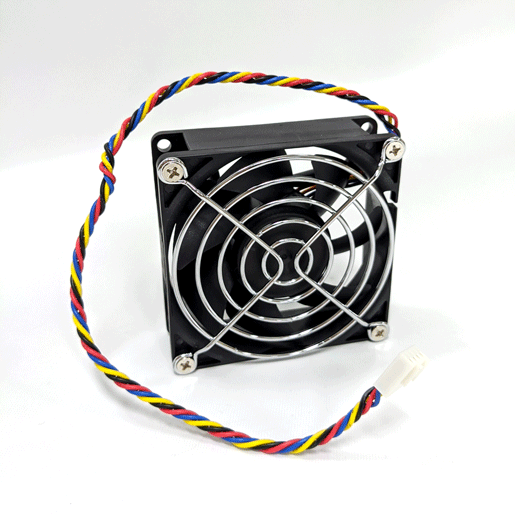

    Fan
    84H331610-047
    Fan, 80*T25mm, L300mm, Ball, 4500RPM, 4P4C, Sunon
    Fan
    84H342310-004

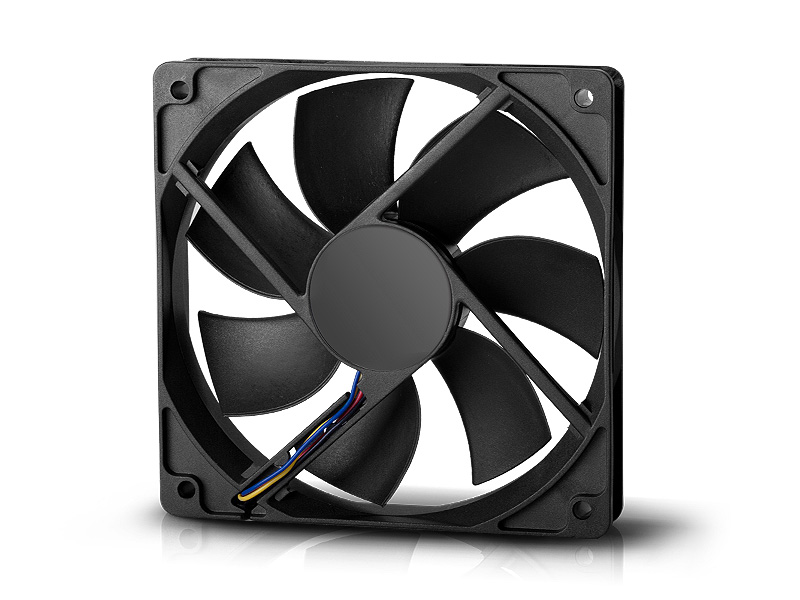

    FAN Module, 120x25mm
    Foot Stand
    84H342210-002

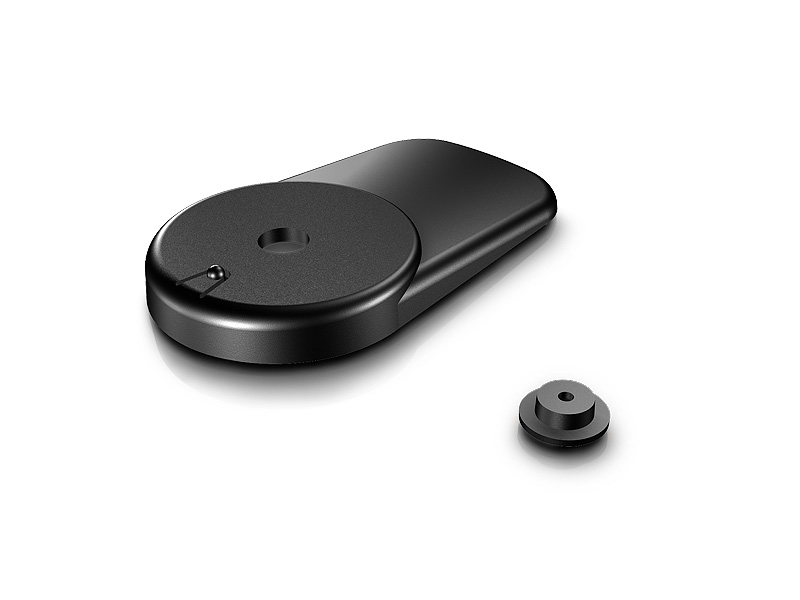

    Foot Stand, 4 pcs/set, Black, RM422/RM413/RM423
    Holder
    84H342310-003
    ODD CAE, RM413/423
    Holder
    84H342910-012
    ODD Cage Kit, For Tower Application, RM413/RM423
    PCBA
    84H331410-025

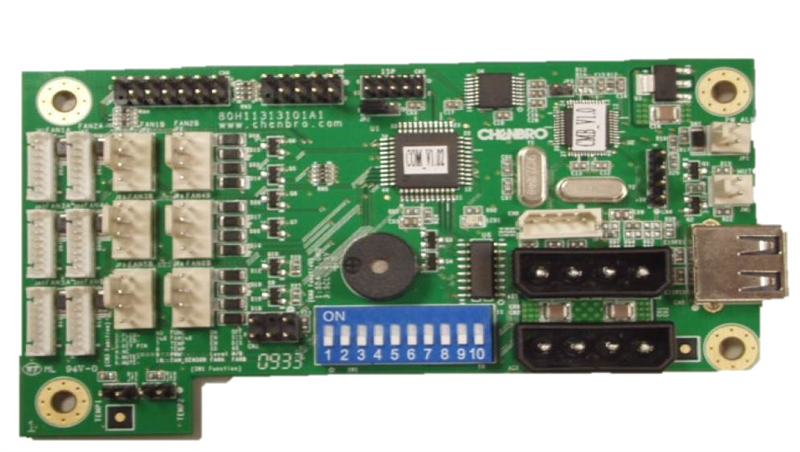

    6-Port Fan Control Board,  w/Alarm Mute & Fan Extend Cable
    PSU module+bracket
    384-PSU00024B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 800W FSL025-7HCG
    PSU module+bracket
    384-PSU00028B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 550W FSK011-7HHG
    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less
    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

    Rail
    84H342310-001
    Rail, 20", RM413/423/RM422, Non Tool-Less
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK32303T3
    SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack
    SK
    SK33502T3
    SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5"  HDD Bays (12g SATA II/SAS)
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK
    SK51102T3
    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    SK
    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
